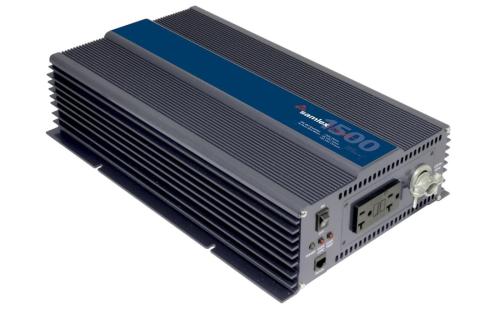

This high efficiency DC-AC inverter converts 48 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features - High efficiency
- 200% Surge Power
- Can be hard wired
- Temperature controlled cooling fan - reduces energy
- consumption
- Low RF emissions
- Wide operating DC input range: 42.0 - 64.0 VDC
- Commercial grade design suitable for heavy duty loads, long
- periods of continuous operation & for emergency back up
- UPC - Universal Protection Circuit: low voltage, over voltage,
- over temperature, over load and short circuit.
- Low idle power draw
- Duplex GFCI protected AC outlets
- Meets UL & CSA standards, FCC compliant
- Product Manual | Download
- Samlex Specifications (EN) | Download
Applications - Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
| Input | 42- 64 VDC |
| Output | 120 VAC |
| Watts | 1500 |
| Surge | 3000 |
| Remote Control | RC-300 (sold separately) |
| Weight | 15.6 |
| Weight | 7.1 |
| Dimensions | 10.35 X 18.43 X 4.16 |
| Dimensions | 263 X 468.2 X 105.6 |
| Safety | UL 60950-1 and CSA C22-2 No.107.1-01 |
