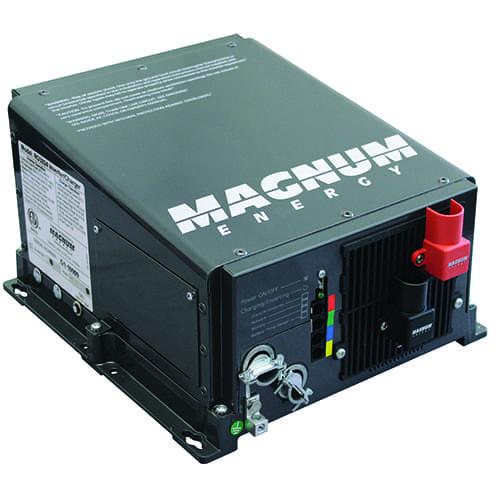

The RD Series Inverter / Charger is a new generation modified sine wave inverter designed specifically for renewable energy use. The RD Series is powerful, easy-to-use, and best of all, cost effective.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.
Safe and reliable: The RD Series is ETL Listed to the stringent requirements of UL 1741 (USA only), ensuring that the inverter is safe and reliable.
Easy-to-install: Install the RD Series in four easy steps: simply connect the inverters output to your distribution circuits or electrical panel, connect your power cable (AC) to the inverters easy-to-reach terminal block, connect the batteries, and switch on the power.
Features - 12 and 24 volt models
- Versatile mounting
- Lightweight
- Multiple ports
- Accessible design
- Convenient switches
- Expanded transfer relay
- Backed by a two-year(24-month) limited warranty
- Product Manual | Download
- Product Specifications | Download
Available For - Renewable Energy Systems
- Off-grid Power
- Back-up Power
| Output Power | 3,900W |
|---|
| Peak Watts | 8,000W |
|---|
| Warranty | 2 Years |
|---|
| Output Voltage | 120 VAC |
|---|
| Output Peak | 66amps |
|---|
| Output Current | 32amps |
|---|
| Output Waveform | Quasi Sine |
|---|
| Output Frequency | 60 Hz |
|---|
| Input Voltage | 24 |
|---|
| Continuous Output Amps | 32amps |
|---|
| Operating Temp | -20 C to +60 C (-4 F to 140 F) |
|---|
| Efficiency | 93% |
|---|
| Weight | 53 lb (24.0 kg) |
|---|
| Dimensions | 13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm) |
|---|
| UL Certified | Yes |
|---|
| Phase | Single |
|---|
| Topology | Low Frequency |
|---|
| Input Voltage Range | 18 - 32 VDC |
|---|
