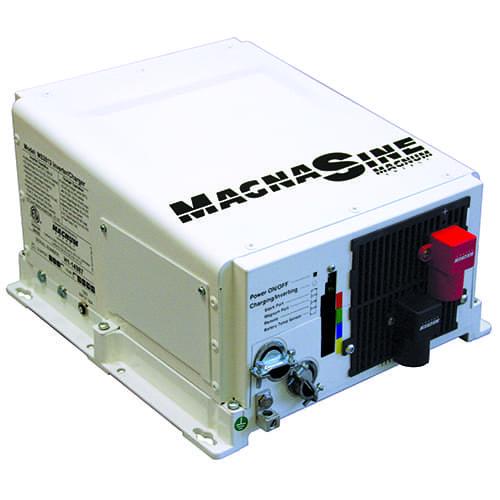

The MS-PAE 120/240V Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PAE Series is powerful, easy-to-use, and best of all, cost effective.
No series stacking required: The unique design of the MS-PAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.
Parallel stacking: You can parallel up to four inverter / chargers for up to 17.6kw of power at 120/240V. The MP panels and router are required for parallel stacking the MS-PAE Series.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers.It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.
Safe and reliable: The MS-PAE Series is ETL Listed to the stringent requirements of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
Features - Pure sine wave
- 24 and 48 volt configurations
- Versatile mounting
- Lightweight
- Multiple ports
- Accessible design
- Convenient switches
- Backed by a three-year(36-month) limited warranty, and a five-year limited warranty when installed on an MMP or MP system.
- Product Manual | Download
- Product Specifications | Download
Available For - Renewable Energy Systems
- Off-grid Power
- Back-up Power
| Output Power | 4,400W |
|---|
| Peak Watts | 8,500W |
|---|
| Warranty | 3 Years |
|---|
| Output Voltage | 120 / 240 VAC |
|---|
| Output Peak | 70amps |
|---|
| Output Current | 35amps |
|---|
| Output Waveform | Pure Sine |
|---|
| Output Frequency | 60 Hz |
|---|
| Input Voltage | 48 |
|---|
| Continuous Output Amps | 35amps |
|---|
| Operating Temp | -20 C to +60 C (-4 F to 140 F) |
|---|
| Efficiency | 94% |
|---|
| Weight | 55 lb (24.9 kg) |
|---|
| Dimensions | 13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm) |
|---|
| UL Certified | Yes |
|---|
| Phase | Single |
|---|
| Topology | Low Frequency |
|---|
| Input Voltage Range | 36.0 - 64.0 VDC |
|---|
