Manufacturer Info

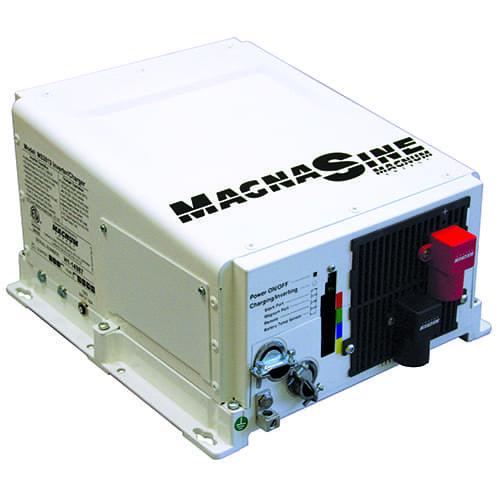

The MS-PAE 120/240V Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PAE Series is powerful, easy-to-use, and best of all, cost effective.
No series stacking required: The unique design of the MS-PAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.
Parallel stacking: You can parallel up to four inverter / chargers for up to 17.6kw of power at 120/240V. The MP panels and router are required for parallel stacking the MS-PAE Series.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers.It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.
Safe and reliable: The MS-PAE Series is ETL Listed to the stringent requirements of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
Features
No series stacking required: The unique design of the MS-PAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.
Parallel stacking: You can parallel up to four inverter / chargers for up to 17.6kw of power at 120/240V. The MP panels and router are required for parallel stacking the MS-PAE Series.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers.It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.
Safe and reliable: The MS-PAE Series is ETL Listed to the stringent requirements of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
Features
- Pure sine wave
- 24 and 48 volt configurations
- Versatile mounting
- Lightweight
- Multiple ports
- Accessible design
- Convenient switches
- Backed by a three-year(36-month) limited warranty, and a five-year limited warranty when installed on an MMP or MP system.
- Product Manual | Download
- Product Specifications | Download
- Renewable Energy Systems
- Off-grid Power
- Back-up Power
Output Power | 4,000W |
---|---|
Peak Watts | 5,800W |
Warranty | 3 Years |
Output Voltage | 120 / 240 VAC |
Output Peak | 48amps |
Output Waveform | Pure Sine |
Output Frequency | 60 Hz |
Input Voltage | 24 |
Operating Temp | -20 C to +60 C (-4 F to 140 F) |
Efficiency | 93% |
Weight | 55 lb (24.9 kg) |
Dimensions | 13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm) |
UL Certified | Yes |
Phase | Single |
Topology | Low Frequency |
Input Voltage Range | 18.0 - 34.0 VDC |
