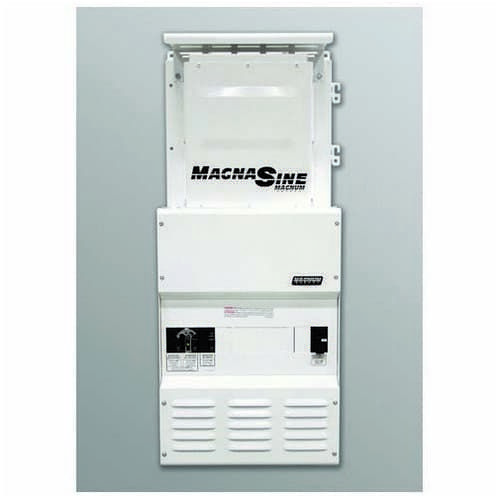

Magnum Energy, MPSL250-30D, Magnum Panel Single Low Power w/250A (fits 24 VDC models) DC breaker, w/30A dual pole AC input breaker (1-2 MS-PAE)
The images shown are for illustration purposes only and may not be an exact representation of the product

Magnum Energy, MPSL250-30D, Magnum Panel Single Low Power w/250A (fits 24 VDC models) DC breaker, w/30A dual pole AC input breaker (1-2 MS-PAE)

  • Model: MPSL250-30D
  • Manufactured by: Magnum Energy
  • Condition: New
  • Estimated Delivery: Dec 7th - Dec 13th
  • In Stock
  • Price: $1,197.35  $921.04
    The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance into easy-to-install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and used with the optional Router (ME-RTR), the MP will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack).

    In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant system.

    Features
    • Expandable: Start with the enclosure and just one inverter and in the future expand to multiple inverters, depending on MP model, with ease, using the MPX.
    • Easy installation: All connections are front-mounted, including AC and DC breakers and the MPX.
    • Labor saving: Panel is pre-wired for fast installation, saving labor costs.
    • DC load breakers: Fits either din rail or back-mount DC load breakers.
    • Convenient knockouts: Knockouts on the side of the enclosure are compatible with most charge controllers.
    • Product Manual | Download
    • Product Specifications | Download
    Includes

    MPSL-30D
    • One 250 ADC breaker
    • Dual 30 AAC input breaker
    • Dual 30 AAC output breaker
    • Dual 30 AAC bypass breaker
    • 500A/50mv DC shunt
    MPSL-60S
    • One 250 ADC breaker
    • Single 60 AAC input breaker
    • Single 60 AAC output breaker
    • Single 60 AAC bypass breaker
    • 500A/50mv DC shunt
    MPSH-30D
    • One 250 ADC breaker
    • Dual 30 AAC input breaker
    • Dual 30 AAC output breaker
    • Dual 125 AAC bypass breaker
    • 1000A/100mv DC shunt
    MPDH-30D
    • Two 250 ADC breakers
    • Two dual 30 AAC input breakers
    • Two dual 30 AAC output breakers
    • Dual 125 AAC bypass breaker
    • 1000A/100mv DC shunt
    Works With
    • MS-PAE Series
