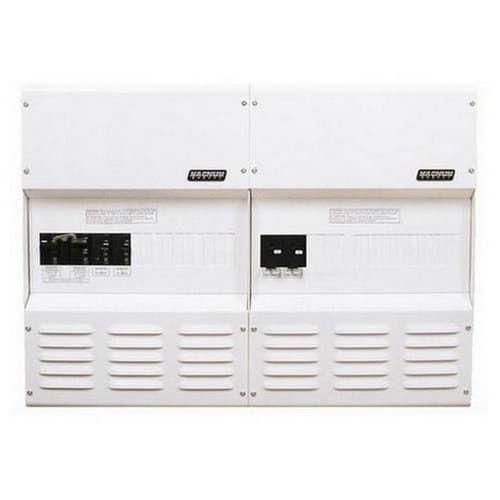

Magnum Energy, MPDH175-30D, Magnum Panel Dual Enclosure High Power w/175A (fits 48 VDC models) DC breaker, w/30A dual pole AC input breaker

  • Model: MPDH175-30D
  • Manufactured by: Magnum Energy
  • Condition: New
  • Estimated Delivery: Jun 24th - Jun 30th
  • In Stock

$2,779.68 $2,138.21

Manufacturer Info

The MP (Magnum Panel) enclosures have been specifically designed to combine all of the major components required for a high power renewable energy system inverter/battery disconnect, AC overcurrent protection, grounding connections, and a full system inverter bypass switch as a convenient way to isolate the inverters for battery maintenance into easy-to-install pre-wired enclosures. Designed for multiple inverter applications, the MP Series enclosures feature convenient front panel operation, and used with the optional Router (ME-RTR), the MP will allow you to easily set up, monitor, and operate up to four MS-PAE inverter/chargers together (must be identical models to parallel stack).

In addition to saving time and money by providing a simple and convenient inverter installation, the MP enclosures ensure safety and reliability by providing a UL and CSA certified and code compliant system.

  • Expandable: Start with the enclosure and just one inverter and in the future expand to multiple inverters, depending on MP model, with ease, using the MPX.
  • Easy installation: All connections are front-mounted, including AC and DC breakers and the MPX.
  • Labor saving: Panel is pre-wired for fast installation, saving labor costs.
  • DC load breakers: Fits either din rail or back-mount DC load breakers.
  • Convenient knockouts: Knockouts on the side of the enclosure are compatible with most charge controllers.
  • Product Manual | Download
  • Product Specifications | Download

  • One 250 ADC breaker
  • Dual 30 AAC input breaker
  • Dual 30 AAC output breaker
  • Dual 30 AAC bypass breaker
  • 500A/50mv DC shunt
  • One 250 ADC breaker
  • Single 60 AAC input breaker
  • Single 60 AAC output breaker
  • Single 60 AAC bypass breaker
  • 500A/50mv DC shunt
  • One 250 ADC breaker
  • Dual 30 AAC input breaker
  • Dual 30 AAC output breaker
  • Dual 125 AAC bypass breaker
  • 1000A/100mv DC shunt
  • Two 250 ADC breakers
  • Two dual 30 AAC input breakers
  • Two dual 30 AAC output breakers
  • Dual 125 AAC bypass breaker
  • 1000A/100mv DC shunt
Works With
  • MS-PAE Series
