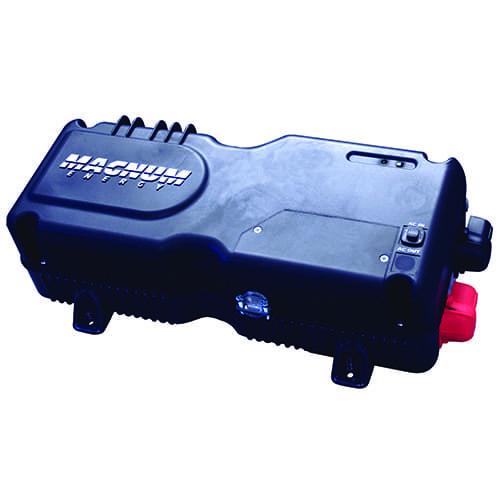

The MM-AE Series Inverter/Charger from Magnum Energy is a modified sine wave inverter providing a cost effective solution for those with smaller power needs in renewable energy applications.Versatile, easy-to-use, and lightweight, the MM-AE Series provides a reliable base for your energy system.
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.
Attractive styling: The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation.
Features - Standard transfer relay
- Versatile mounting
- Fan cooled
- High / low battery protection
- Current overload protection
- Convenient switches
- Circuit breaker protection
- Battery temperature sensor
- Backed by a two-year(24-month) limited warranty
- Product Specifications | Download
Available For - Renewable Energy Systems
- Off-grid Power
- Back-up Power
| Output Power | 1,500W |
|---|
| Peak Watts | 2,650W |
|---|
| Warranty | 2 Years |
|---|
| Output Voltage | 120 VAC |
|---|
| Output Peak | 22amps |
|---|
| Output Current | 13amps |
|---|
| Output Waveform | Quasi Sine |
|---|
| Output Frequency | 60 Hz |
|---|
| Input Voltage | 24 |
|---|
| Continuous Output Amps | 13amps |
|---|
| Operating Temp | -20 C to +60 C (-4 F to 140 F) |
|---|
| Efficiency | 95% |
|---|
| Weight | 22 lb (10 kg) |
|---|
| Dimensions | 16.6" x 8.4" x 4.7" (42 cm x 21 cm x 12 cm) |
|---|
| UL Certified | No |
|---|
| Phase | Single |
|---|
| Topology | Low Frequency |
|---|
| Input Voltage Range | 18 to 32 VDC |
|---|
