Magnum Energy, ME-BMK-NS-L, Battery Monitoring Kit, NO DC SHUNT - Battery State of Charge Meter (Must be Connected to a Magnum Inverter)
Manufacturer Info
ME-BMK (ME-BMK-NS)
The ME-BMK/ME-BMK-NS is a single battery bank amp-hour meter that monitors and provides important information about the condition of the battery. This information will let you know how much energy you have available, and let you plan your electrical usage to ensure the battery is not being over-discharged.
The ME-BMK is easy to install and is designed to be networked with a Magnum Energy inverter/charger using a remote (ME-RC50 or ME-ARC50) or router (ME-RTR) to display information about your battery bank.
The ME-BMK/ME-BMK-NS is a single battery bank amp-hour meter that monitors and provides important information about the condition of the battery. This information will let you know how much energy you have available, and let you plan your electrical usage to ensure the battery is not being over-discharged.
The ME-BMK is easy to install and is designed to be networked with a Magnum Energy inverter/charger using a remote (ME-RC50 or ME-ARC50) or router (ME-RTR) to display information about your battery bank.
- DC volts: 7 to 70 ( 0.5%) auto voltage detection
- DC amps: 0.1 to 999 ( 1.0%)
- Battery SOC %: 0 to 100% (1% increments)
- Power draw: .6 watts
- Amp hours in/out: 32,768 amp hours (1 AH increments)
- rAH out (resettable amp hours removed): 0 to 65,353 amp hours, resettable (0.1 AH increments)
- tAH out (total amp hours removed): 0 to 65,535,000 amp hours (0.1 k or 100 AH increments)
- Minimum/maximim DCV Display: 7 to 70 VDC, resettable
- Shipping weight: 2 lb (.9 kg)

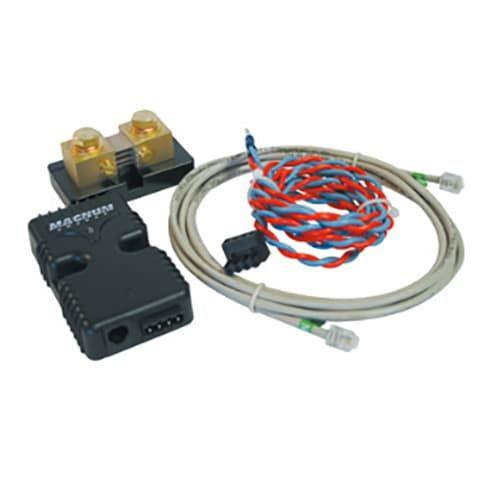

- Kit includes: Manual, sense module, DC shunt, twisted pair wire, and communication cable
- Sense wire: Twisted pair -blue & orange, 5' length, 18 AWG wire
- Communication cable: 4-conductor, 10' twisted pair, telephone standard
- Remote requirements: Use with an ME-RC with firmware revision of 2.0 or higher or an ME-ARC (all revisions)
- Download Owners Manual | Download
- Download Spec Sheet | Download
