Manufacturer Info

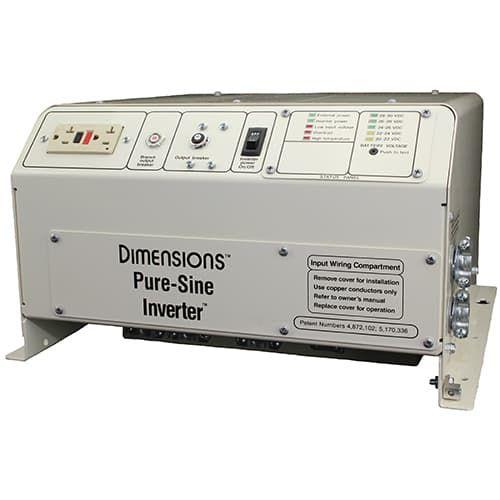

This Dimensions Series Inverter is a 24VDC low frequency design that will efficiently power any load within its wattage rating. Its iron-core transformer can handle the frequent power surges associated with industrial grade tools, pumps, heaters, and motors.
Specifications
Specifications
- Output Power: 4,800W
- Peak Watts: 13,200W
- Output Voltage: 120 VAC
- Output Peak: 110amps
- Output Current: 40amps
- Output Waveform: Pure Sine
- Output Frequency: 60 Hz
- Motor Starting Capacity: 2 hp
- Input Voltage: 24
- Continuous Output Amps: 40amps
- Operating Temp: -20 to60 C (0 to 140 F)
- Efficiency: Up to 88%
- Weight: 90
- Dimensions: 16 x 17 x 10
- UL Certified: Yes
- Phase: Single
- Topology: Low Frequency
- Input Voltage Range: 22-28
- Product Manual | Download
- Product Specifications | Download
- Enclosed AC and DC connections
- Remote on/off switch hookup
- GFCI outlet protection
- LED indication of External Power, Inverter Power, Low Voltage
- Automatic low battery shut off
- Automatic electronic short circuit/overload protection
