AIMS Power, PV60CASE, 60 Watt Portable Foldable Solar Panel With Built In Carrying Case Monocrystalline

  • Model: PV60CASE
  • GTIN: 00840271004372
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: Oct 12th - Oct 18th
  • In Stock
Price:

$148.20 $114.00

Manufacturer Info

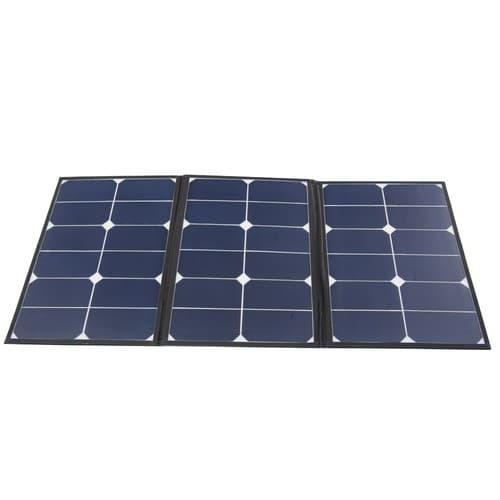

Featuring AIMS Power, 120 watt foldable and portable solar panel, made with high quality monocrystalline solar cells and a water resistant rugged case.

This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage.

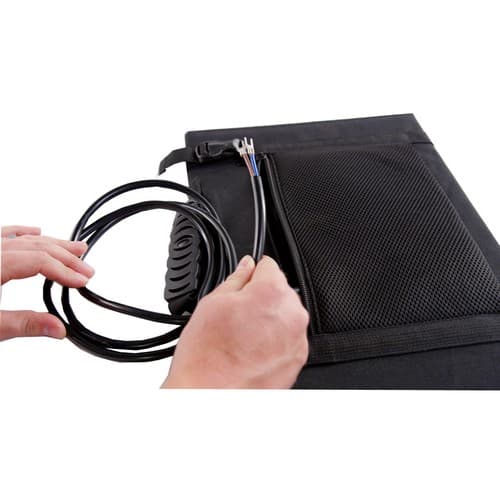

One the front of the carrying case, there is a zipper pocket to store a small charge controller. The foldable panel also includes a built in 6 foot charge controller wire allowing for quick connection to various size charge controllers.

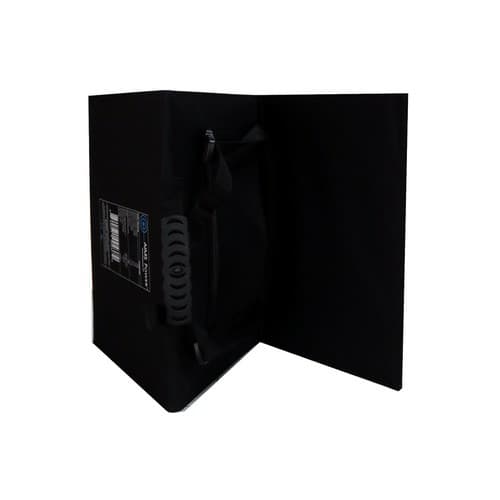

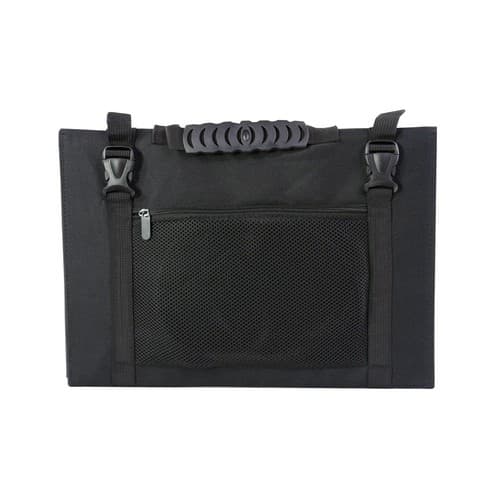

The carrying case is water resistant, includes a comfortable rubber handle and secures using side release plastic buckles.

Backed by a 10 year warranty and weighing in at under 3 pounds, this portable solar panel is a must for every remote application needing power.

Features
  • Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
  • Built in solar charge controller cable 6ft
  • Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
  • Portable and easily adjusts to the optimum sunlight angle
  • Accordion style fold up case
  • Weather resistant. Appropriate for outdoor use.
  • Durable and rugged case with convenient side zipper pocket to store wires and charge controller
  • Lightweight and super thin allowing for easy storage and set up
  • Bypass diode minimizes the power drop when shaded
  • Modules are independently tested to ensure conformance with certification and regulatory standards
  • Manufacturing facility certified to ISO 9001 quality management system standards
  • Panels capable of +/- 3% power efficiency than rated
  • 5 year warranty, 10 year 80% output
Specifications
  • High performance: light transmittance up to 93%
  • Cell Efficiency: 22.3% (one of the highest)
  • Module Efficiency: 19.2% (one of the highest)
  • Maximum Power: 60W
  • Tolerance Wattage (e.g. +/- 5%): +/- 3W
  • Maximum System Voltage: 600V DC (UL)
  • Max Power Voltage (Vmp): 19.8 V
  • Max Power Current (Imp): 3 A
  • Open-Circuit Voltage (Voc): 23.7 V
  • Short-Circuit Current (Isc): 3.6 A
  • Maximum Fuse Rating: 10 A
  • Fire Safety Class: Class A
  • Temperature Range: -40F to 185F
  • Number of cells: 2 x 6 x 3
  • Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers
Temperature Coefficients C
  • ISC(%): +2.6
  • Voc(%): -50.6
  • Prm(%): -.38
  • Im(%): +2.2
  • Vm(%): -60.8
  • Dimensions: Expanded 33 X 15.8 X 0.20 inches Folded 11.22 x 15.85 x .6 inches
  • Weight: 2.85 lbs
  • Certifications: CE, ETL, TUV and RoHS
Case
  • Water resistant
  • Durable rubber handle
  • Easy side slide buckles
  • Convenient size zipper pocket for wires and charge controller storage
Warranty: 5 year manufacturer, 10 years 80% output
