(image for) Midnite Solar, MNPV10-1000, String Combiner, 220 A, 1000 VDC, Nema 3R, 5-String, 10 Position, Fuses and Fuse Holders Not Included

The images shown are for illustration purposes only and may not be an exact representation of the product

Midnite Solar, MNPV10-1000, String Combiner, 220 A, 1000 VDC, Nema 3R, 5-String, 10 Position, Fuses and Fuse Holders Not Included

Model: MNPV10-1000
Manufactured by: Midnite Solar
Condition: New
Estimated Delivery: May 11th - May 17th
In Stock
Out of Stock

Price:

$365.09 $280.84

Manufacturer Info

(image for) Midnite Solar

Other products

Enclosure only - NOT SOLD WITH FUSEHOLDERS

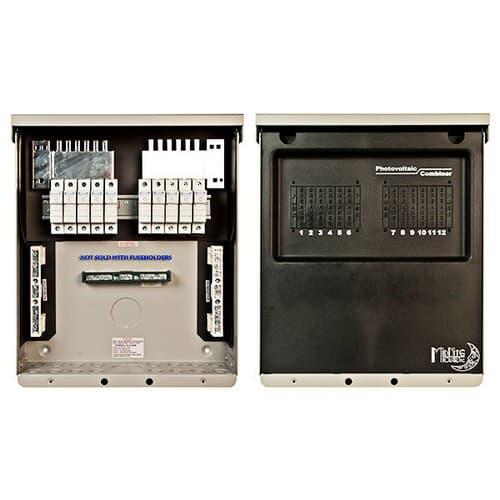

(For 1000 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 10 1000VDC fuse holders.

The MNPV10-1000 uses 1000 volt fuse holders (MNTS) and fuses (MN1000FUSE). Includes two 15 position PV negative busbars, 14 position ground busbar and two 220A Positive busbars.

Fuse holders (MNTS) and fuses (MN1000FUSE) sold separately.

This combiner is intended for transformer-less 1000V grid tie inverters that need up to 5 strings.

Type 3R environmental rating
Warranty - 5 yrs.
Listed by ETL for US & Canada
Made in the USA
PV Combiner Brochure/Spec Sheet | Download
PV Combiner Brochure/Spec Sheet - Spanish | Download
ATM Regular Combiners and 1000V Combiners | Download
MNPV10 and 12 Manual | Download
