Manufacturer Info
Enclosure only - NOT COMPATIBLE WITH THE BIRDHOUSE.

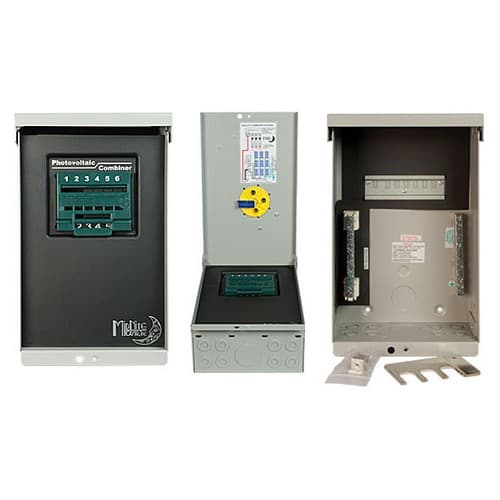

This 3R MNPV6-250 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model includes the buss-bar to use up to 3 of our 300 volt DC breakers as a 3 string DC combiner.
The MNPV6-250 DISCO's red handled is LOCKABLE IN THE OFF POSITION!
Off-grid PV combiner for use with up to 3 300VDC breakers with the included buss-bar. Also included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER. Load break rated.
Depending upon the model number, you can use: ng upon the model number, you can use:
This 3R MNPV6-250 DISCO combiner is one in a series of disconnecting PV combiners from MidNite Solar. This model includes the buss-bar to use up to 3 of our 300 volt DC breakers as a 3 string DC combiner.
The MNPV6-250 DISCO's red handled is LOCKABLE IN THE OFF POSITION!
Off-grid PV combiner for use with up to 3 300VDC breakers with the included buss-bar. Also included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER. Load break rated.
Depending upon the model number, you can use: ng upon the model number, you can use:
- Type 3R environmental rating
- DC 600V (1 circuit Pos or Pos and Neg switched) Part no. MNPV6
- DC 300V (3 circuits) Part #MNPV6-250
- DC 150V (6 circuits) Part #MNPV6
- AC 120v 20 amps (6 circuits) Part #MNPV6
- AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro
- AC and DC can be installed in the same box! Example: 600Vdc 20 amp PV in and 40 amp 240Vac Inverter output
- 3R Combiner Roof Pitch | Download
- MNPV6 Disco Manual | Download
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
