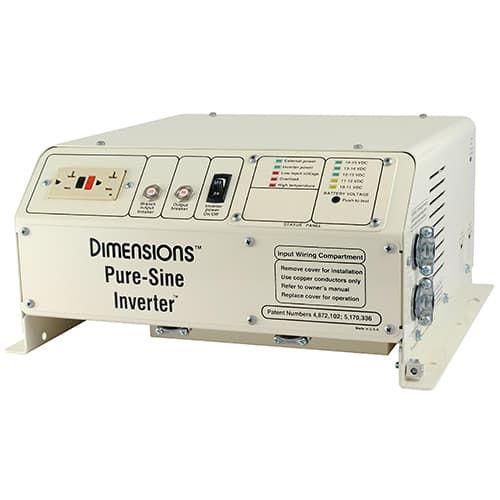

This Dimensions Series Inverter is a low frequency workhorse that will efficiently power any load within its wattage rating. Its massive iron core transformer can handle the frequent power surges associated with industrial grade tools, pumps, heaters, and motors. These Dimensions inverters are UL listed so you can be confident in our consistent quality. We back that assertion up with an unparalleled 4 Year Warranty.

Specifications

• Output Power: 1,800W
• Peak Watts: 3,960W
• Warranty: 4 Years, Advance Replacement first 2 years
• Output Voltage: 120 VAC
• Output Peak: 44amps
• Output Current: 15amps
• Output Waveform: Pure Sine
• Output Frequency: 60 Hz
• Motor Starting Capacity:1/2 hp
• Input Voltage: 12
• Continuous Output Amps: 15amps
• Operating Temp: -20 to 40 C (0 to 104 F)
• Efficiency: Up to 88%
• Weight: 42
• Dimensions: 15.5 x 16 x 7.5
• UL Certified: Yes
• Phase: Single
• Topology: Low Frequency
• Input Voltage Range: 10.5-20
• Product Manual | Download
• Product Specifications | Download

Features

• Engineered construction and cooling methods
• Thermally controlled cooling fan
• Enclosed AC and DC cable connections
• Remote ON/OFF switch hookup
• GFCI outlet protection
• LED indication of External power, Inverter power, Low input voltage, High temperature, & Overload
• Battery voltage indicator with push-to-test
• Automatic electronic short circuit/overload protection
• Automatic over temperature shutdown
• Output circuit breakers
• Automatic low battery shutdown at 10.5 VDC (with in-rush delay)
