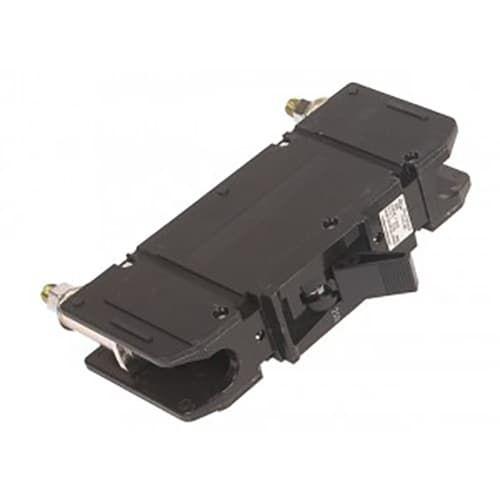

Outback Power, PNL-50-AC/DC, 50 Amp, 150 VDC and 120 VAC, 1/4" stud terminals
The images shown are for illustration purposes only and may not be an exact representation of the product

Outback Power, PNL-50-AC/DC, 50 Amp, 150 VDC and 120 VAC, 1/4" stud terminals

  • Model: PNL-50-AC/DC
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Jul 3rd - Jul 9th
  • In Stock
Price:

$28.39 $21.84

Manufacturer Info

(image for) Outback Power
Front panel, single pole mount with stud terminals on the back. Ring terminals required.

Product Highlights
  • Panel mounted hydraulic-magnetic type breakers
  • Rated for 100% continuous duty cycle
  • Not affected by high ambient temperatures
  • Non-polarized for use in any wiring orientation
  • Can be used for input, output or load circuits
  • Contact OutBack for additional information
PNL-1-AC/DC 1 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-5-AC/DC 5 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-10-AC/DC 10 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-15-AC/DC 15 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-20-AC/DC 20 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-30-AC/DC 30 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-30-AC 30 Amp, 250Vac, 1/4" stud terminals
PNL-40-AC/DC 40 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-50-AC/DC 50 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-60-AC/DC 60 Amp, 150Vdc and 120Vac, 1/4" stud terminals
PNL-80-DC 80 Amp, 150Vdc, 1/4" stud terminals
PNL-100-DC 100 Amp, 125Vdc, 5/16" stud terminals
PNL-125-DC 125 Amp, 125Vdc, 5/16" stud terminals
PNL-175-DC 175 Amp, 125Vdc, 3/8" stud terminals
PNL-250-DC 250 Amp, 125Vdc, 3/8" stud terminals
