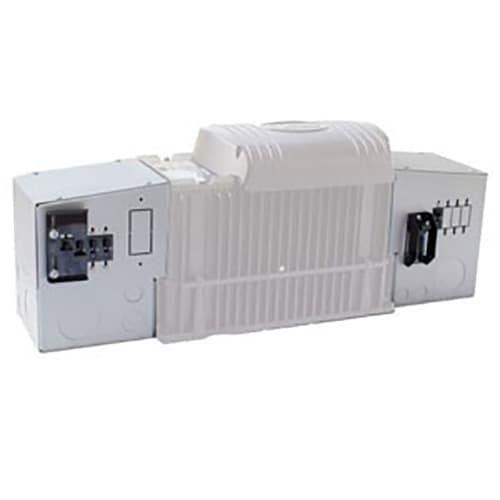

Outback Power, FW250, DC and/or AC breaker enclosure - secures directly to either end of an FXR Series Inverter/Charger. Includes ground bus bar and DC breaker handle guard. Holds up to 4 AC or 4 DC - 1 to 80 Amp, one 175 or 250 Amp panel mount breaker and a GFCI AC outlet (not included)

  • Model: FW250
  • Manufactured by: Outback Power
  • Condition: New
  • This product is currently on backorder.
    Expected Ship Date: Friday 15 November, 2024
Price:

$341.31 $262.55

Would you like to add these items to your order?
Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $731.91 $563.00

Manufacturer Info

(image for) Outback Power
The FLEXware 250 is for applications with modest power requirements such as cabins, chalets, homes, remote communication sites and backup power systems. The FLEXware 250 accommodates all of the essential protective devices in the smallest possible space at the lowest installed cost.

Utilizing an extremely compact design and unique mounting features, one or two FLEXware 250 enclosures can be mounted on each end of a single FX Series Inverter/Charger. The FLEXware 250 enclosure is contructed of powder-coated aluminum and has been ETL listed. It provides breaker spaces for battery, PV array or PV GFP breakers and mounting locations for AC GFCI outlet, AC breakers and an Input-Output-Bypass Assembly. In keeping with the philosophy of FLEXware, the FLEXware 250's flexibility is evident in the generous number of knock-outs allowing the installation of conduit, cable glands, and other installation accessories.

Product Highlights
  • Accommodates all of the essential protective devices in the smallest possible space
  • Extremely compact design and unique mounting features
  • Mount capabilities on each end of a single FX Series Inverter/Charger
  • Constructed of powder-coated aluminum; ETL listed
  • FLEXware 250 - User's Guide | Download
  • FW-IOB-S-120VAC Input/Output/Bypass Assembly - Installation Instructions | Download
  • FW-IOB-S-230VAC Input/Output/Bypass Assembly - Installation Instructions | Download
Holds up to eight 1 to 80 Amp, one 175 or 250 Amp panel mount breaker and a GFCI AC outlet (not included). Does not use the DCA or ACA for connection to an FX Series Inverter/Charger. DC current shunt not included

DC and/or AC breaker enclosure for one FX Series Inverter/Charger

Includes: Ground bus bar, DC breaker handle guard, breaker mounting hardware and enclosure mounting hardware.
Unit Dimensions (H x W x D) 7.5 x 6.5 x 8.6" (19.1 x 16.5 x 21.8 cm)
Shipping Dimensions (H x W x L) 9.75 x 8.4 x 11.6" (24.8 x 21.3 x 29.5 cm)
Shipping Weight 5 lbs. (2.3 kg)
Enclosure Type Type-1 indoor (IP30
System Rating Single-Phase 120VAC 60 Amp 7.2 kW
Bypass Breaker One Pole @ 60 Amps 7.2 kW
Input Breaker One Pole @ 60 Amps 7.2 kW
Output Breaker One Pole @ 60 Amps 7.2 kW
System Rating Single-Phase 230VAC 30 Amp 6.9 kW
Bypass Breaker One Pole @ 30 Amps 6.9 kW
Input Breaker One Pole @ 30 Amps 6.9 kW
Output Breaker One Pole @ 30 Amps 6.9 kW
