OutBack's FLEXware PV Combiner Series sets the new standard for PV balance-of-system hardware. Ideal for both small or large systems, the FLEXware PV8 and FLEXware PV12 accommodates the overcurrent protection requirements of your application. From 150VDC breakers for low voltage PV systems, to 600VDC fuse holders for high voltage PV systems, the FLEXware PV Combiner series handles it all.

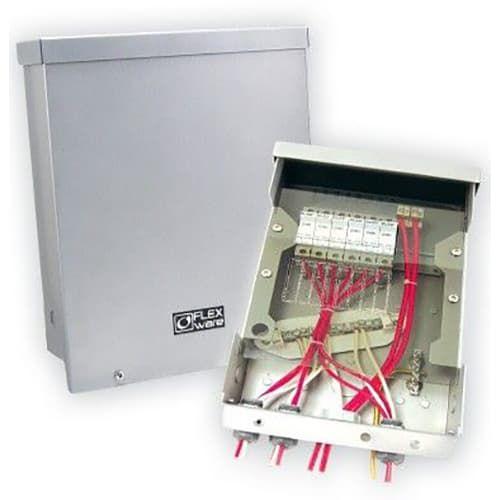

Designed to survive in outdoor environments, the rainproof, UL type 3R powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design makes wiring fast and easy without the larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 AWG conductors. The tinted flame-retardant polycarbonate deadfront panel creates a clean appearance while preventing accidental contact with the live terminals and is easily removable during installation.
The FLEXware PV Combiner makes it easy to take your installation to the next level.
Holds up to eight OutBack Power Technologies DIN mounted breakers for PV array configurations of 12 to 72 VDC systems with a maximum open circuit voltage of 150 VDC or use six OutBack Power Technologies OBFH "touch safe" type fuse holders for high voltage systems with a maximum open circuit voltage of 600 VDC
Holds up to twelve OutBack Power Technologies DIN mounted breakers for PV array configurations of 12 to 72 VDC systems with a maximum open circuit voltage of 150 VDC or use eight OutBack Power Technologies OBFH "touch safe" type fuse holders for high voltage systems with a maximum open circuit voltage of 600 VDC
Product Highlights - New standard for PV balance-of-system hardware
- From 150VDC breakers for low voltage PV systems
- High voltage PV systems
- Designed to survive in outdoor environments
- Spec Sheet | Download
- Manual | Download
| | FWPV-8 | FWPV-12 |
|---|
| Enclosure Material | Powder coated aluminum with stainless steel hardware | Powder coated aluminum with stainless steel hardware |
| Mounting Options | Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch) | Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch) |
| Enclosure Rating | Outdoor Rainproof, UL Type 3R | Outdoor Rainproof, UL Type 3R |
| Enclosure Security | Padlock hole in chassis and cover for up to 3/8 inch pad lock | Padlock hole in chassis and cover for up to 3/8 inch pad lock |
| Output Terminals | #14 - 2/0 AWG (2.08 - 67.43 mm2) Two box lug terminals included | #14 - 2/0 AWG (2.08 - 67.43 mm2) Two box lug terminals included |
| Number of separate circuits | One Circuit | One or Two Circuits |
| Number of 150VDC breakers | up to 8 | up to 12 (two groups of six) |
| Number of 600VDC fuse holders | up to 6 | up to 8 (two groups of four) |
| Input Terminal | 150VDC Breakers / #14 - 6 AWG (2.08 - 13.3 mm2) 600VDC Fuse / #14 - 10 AWG (2.08 - 5.26 mm2) | 150VDC Breakers / #14 - 6 AWG (2.08 - 13.3 mm2) 600VDC Fuse / #14 - 10 AWG (2.08 - 5.26 mm2) |
| Dimensions Unit (H x W x D)Shipping (H x W x L) | 15.2 x 9.2 x 3.9" (38.7 x 23.3 x 9.9 cm)4.3 x 13 x 19" (10.9 x 24.1 x 48.3 cm) | 15.2 x 12.7 x 3.9" (38.7 x 32.2 x 9.9 cm)4.3 x 9.5 x 19" (10.9 x 24.1 x 48.3 cm) |
| Weight Unit Shipping | 4.4 lbs (2.0 kg)5.5 lbs (2.5 kg) | 5.9 lbs (2.7 kg)7.4 lbs (3.3 kg) |
