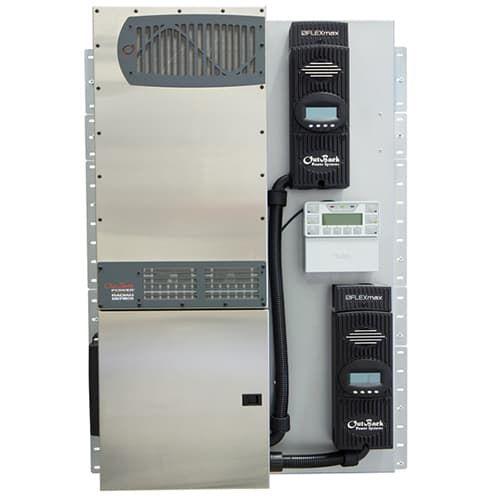

Outback Power, FPR-8048A-01, GS8048A-01 Inverter/Charger 8.0 kW, 48 VDC FLEXpower Radian, pre-wired GSLC with 120/240 VAC Bypass, 175 Amp DC breakers, PNL-GFDI-80D and 80 Amp PV breaker, MATE3s, HUB 10.3, FN-DC, RTS, plus two FLEXmax 80 charge controllers. Listed to UL1741-SA
Manufacturer Info
OutBack's pre-assembled and pre-wired power systems take the concept of fast, easy installation to a new level of performance, value and flexibility with the FLEXpower Radian.
Everything needed, outside of power sources and battery backup, is completely integrated-just install the mounting bracket, hang the system on a wall, make the necessary connections and the system is fully operational.
Available in the Radian A Series 4kW or 8kW inverter/charger, both models incorporate OutBack's GridZero technology, a superior level of intelligence in energy management for self-generation and self-consumption programs. It provides precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes. Both models feature an Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as Lithium-Ion and others, and enhanced diagnostics for improved performance.
FLEXpower Radian Applications
Everything needed, outside of power sources and battery backup, is completely integrated-just install the mounting bracket, hang the system on a wall, make the necessary connections and the system is fully operational.
Available in the Radian A Series 4kW or 8kW inverter/charger, both models incorporate OutBack's GridZero technology, a superior level of intelligence in energy management for self-generation and self-consumption programs. It provides precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes. Both models feature an Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as Lithium-Ion and others, and enhanced diagnostics for improved performance.
FLEXpower Radian Applications
- The 4kW FLEXpower Radian (FPR- 4048A) is ideal for smaller power applications-including homes, cabins, remote communication sites and backup power systems.
- The 8kW FLEXpower Radian (FPR-8048A) is ideal for applications with medium-sized power requirements-including larger homes and light commercial or backup power systems.
- Product Specifications | Download
- Product Manual | Download
- Factory tested, pre-wired and pre-configured
- Fast installation with a pre-assembled system and fully integrated GS load center
- Optimized system foorprint
- GridZero technology optimizes the balance between stored and renewable energy sources, minimizing grid dependence
- Advanced Battery Charging (ABC) supports leading-edge battery technologies, including lithium-ion
- Dual AC inputs for seamless generator integration in grid-interactive applications
- Grid-interactive and stand-alone capability in one unit
- System monitoring via web interface with OPTICS RE
- Components carry all of the necessary UL certifications
Prewired Systems* | Description | Inverter(s) | GSLC | BYPASS | Charge Controller | Inverter OCPD** | PV OCPD | RTS |
---|---|---|---|---|---|---|---|---|
For 120/240 VAC/60Hz Applications | ||||||||
FPR-4048A | GS4048A FLEXpower Radian | GS4048A | GSLC175PV1-120/240 | 120/240 VAC | (1) FLEXMax 80 | 175A | 80A | Yes |
FPR-8048A | GS8048A FLEXpower Radian | GS8048A | GSLC175PV-120/240 | 120/240 VAC | (2) FLEXmax 80 | 175A | 80A | Yes |
