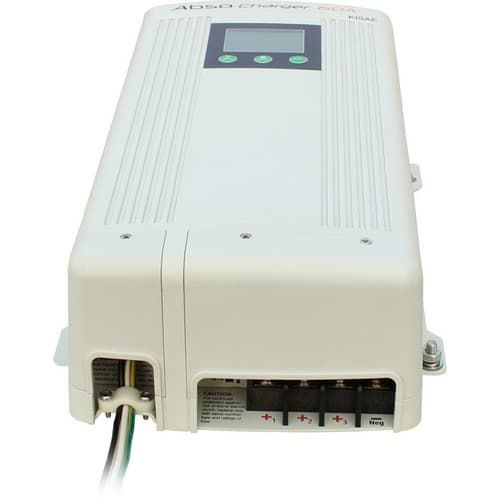

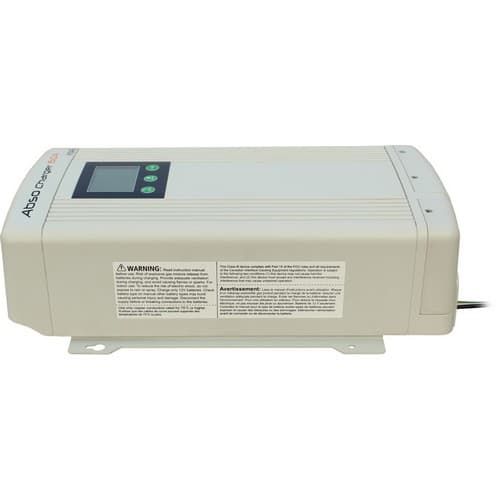

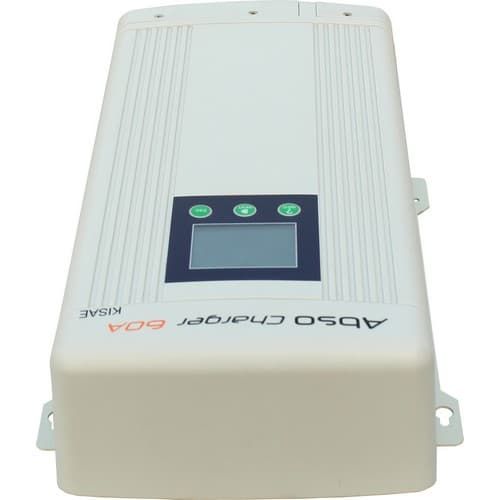

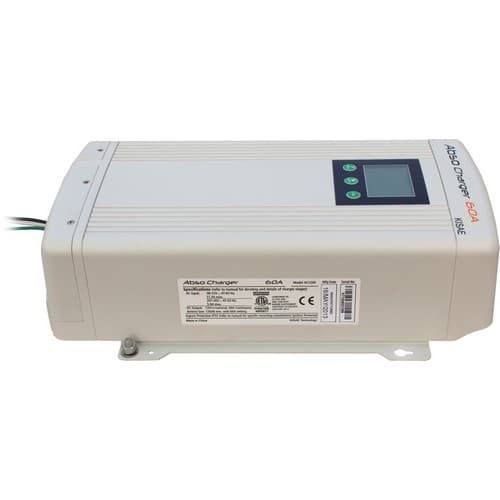

KISAE Abso battery chargers are fully automatic multi-stage battery chargers that provide the abilityto charge 3 separate battery banks. They are the ultimate set-and-forgetcharger, designed to quickly and accurately recharge your deep cyclebatteries, whether AGM, Flooded or Lithium.
Product Features Include - Multi-Stage Battery Charging
- Priority Bank Charging
- Digital LCD Display
- Easy Installation
- Compact design and small footprint
- Travel Abroad and Use Anywhere
- Silent Mode: Unique setting for night-time use
Features and Benefits - Low frequency design with high surge capability to start demanding loads
- True sinewave output will run heavy-duty motor loads and entertainment systems flawlessly
- Low battery shutdown to prevent total battery discharge
- System remote panel (included) provides vital system information
- Over temperature shutdown
- Mounting brackets and high quality DC connectors make installation simple
- Approved to UL, CSA, and European regulatory standards
- Product Specifications | Download
- Product Manual | Download
Dimensions (W x L x H) - AC 1260: (4.0kg, 356 x 206 x 99 mm)
Weight - AC 1260: 8.8lb 14 x 8.1 x 3.8 inches
| Battery Charger | AC 1260 |
|---|
| Output Rating |
|---|
| Output Voltage | 12V |
|---|
| Output Current (Maximum) | 60A |
|---|
| DC Output |
|---|
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
|---|
| Charge | 14.2 – 15.5V |
|---|
| Float | 13.4 – 13.8V |
|---|
| Equalize (Flooded Battery Only) | 16.0V |
|---|
| Charging Control | Three / Two Stages, Program |
|---|
| DC Output Bank | Three |
|---|
| Parasitic Current | < 2 mA |
|---|
| AC Input |
|---|
| AC Input Voltage (Nominal) | 120, 230, 240VAC |
|---|
| AC Input Operating Range | 90 - 265VAC |
|---|
| AC Input Frequency Range | 47 - 63Hz |
|---|
| Power Consumption (Full Load) | 1050W |
|---|
| Power Factor Correction | YES |
|---|
| Display Panel |
|---|
| Digital Display | LCD with back lighting |
|---|
| Digital Info | Voltage, Current, Status and Error Code |
|---|
| Protection |
|---|
| Reverse Battery | YES |
|---|
| Cooling | Forced ventilation |
|---|
| Output Short Circuit | YES |
|---|
| Ingress Protection | IP 32 |
|---|
| Enclosure |
|---|
| AC Input connection | Hardwire / AC Input Cord (Schuko, UK, Australia plug) |
|---|
| DC Output Connection | Heavy Duty Studs |
|---|
| Weight | 8.8 lbs |
|---|
| Dimension | 14 x 8.1 x 3.8" |
|---|
