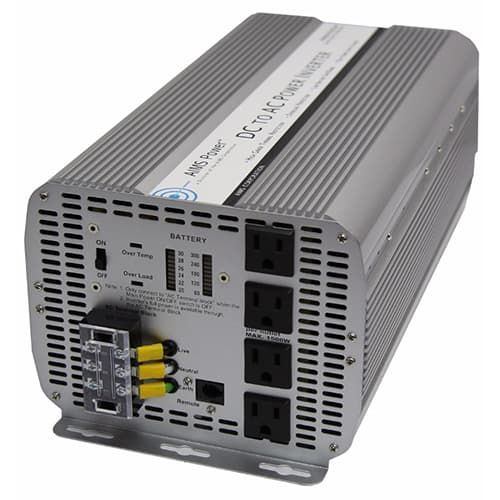

This is the AIMS 5000 Watt 48 Volt Power Inverter. It produces 120 volts of power from a 48 volt battery bank. This inverter is more efficient and designed for longer life due to the 48 volt DC input.
- For models purchased before 1/23/2015 - use remote PWRIREMPWR
- For models purchase after 1/23/2015 - use remote REMOTEHF
Features- 5000 Watt max continuous power
- 48 Volt Power Inverter
- Modified sine wave

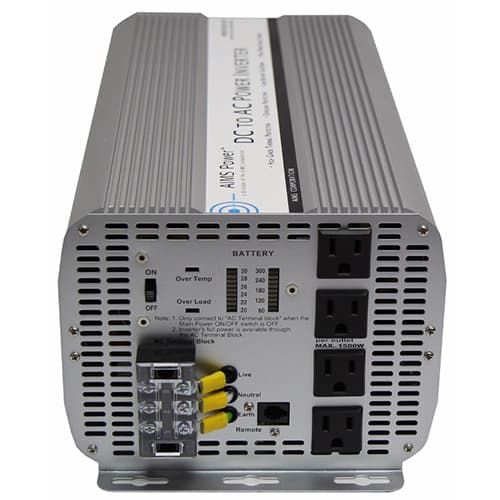

- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED indicator
- Over Load LED indicator
- Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets
- On/off switch
- Over Temperature protection
- Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- Product Manual | Download
Specifications- Continuous output power: 5000 Watts
- Surge power capability (peak power): 10000 Watts

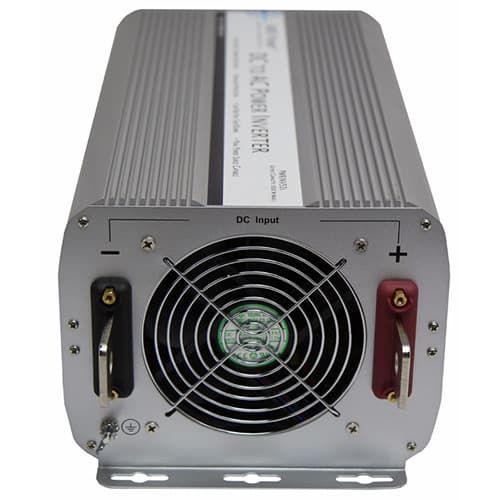

- dc input / operating voltage: 39 to 64 Volts
- Output voltage: 120 Volts ac +/- 10%
- Output wave form: modified sine wave with phase correction
- Output frequency: 60 Hz +/- 1 Hz
- Battery low voltage alarm: 40 +/- 0.5 Volts
- Battery low voltage shutdown: 38 +/- 0.5 Volts
- No load current: < 0.2 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
- AC Output Socket Type: quadruple Type 2 -3 prong
- High input voltage protection: 64 volts
- Low input voltage shutdown: 38 volts
- Internal fuse protection
- Product size (L x W x H): 17X 7.75X 6
- Weight: unit 18 lbs boxed 20 lbs
- UL maximum recommended per outlet 1500W
Dimensions - Unit Weight: 16.5 lbs.
- Unit Size L x W x H: 16.92 x 7.95 x 6.10 inches
- Shipping Weight: 20 lbs.
- Shipping L x W x H 24 x 12 x 9 inches
