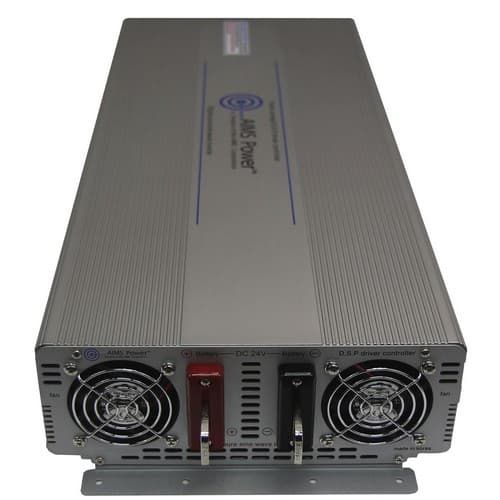

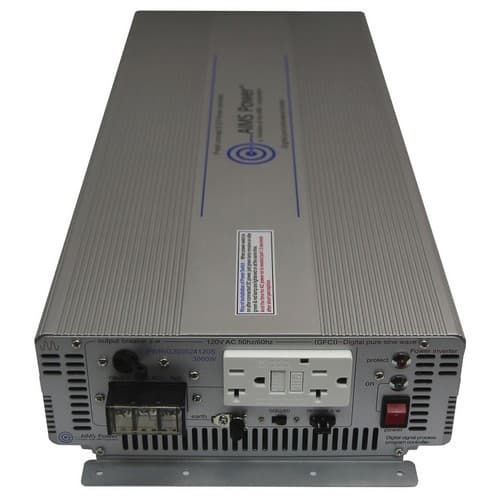

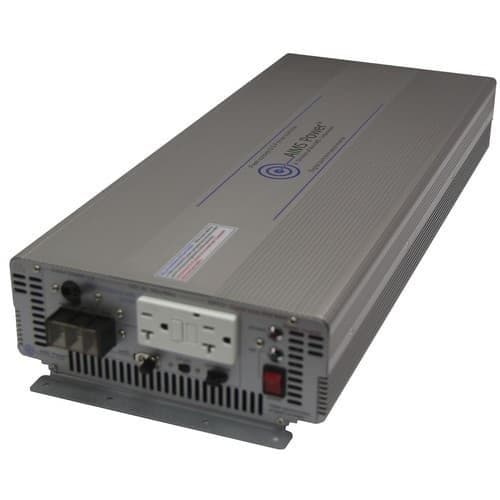

AIMS Power, PWRIG300024120S, 3000 Watt Pure Sine Power Inverter

  • Model: PWRIG300024120S
  • GTIN: 00840271008059
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: Oct 8th - Oct 14th
  • In Stock
Price:

$908.70 $699.00

Manufacturer Info

This 3000 Watt Pure Sine inverter uses a D.S.P. (Digital Signal Processor) driver to safely generate a pure sine wave at a high quality 120V AC output. The product responds to the high and low battery voltage changes and adapts to its output perfectly to ensure a stable 120V AC. The innovative technology of this pure sine inverter will support the usage of sensitive loads. All DC and AC operations are automatically controlled by the D.S.P. program. The improved efficiency of this inverter ensures nominal output voltage even at low input DC voltage. Since the output voltage is 3% of the variation input voltage stable power will always be produced for your AC loads. This inverter has excellent driving power with a surge output that's 2 times higher than the output capacity. This allows you to exceed the output for a short period of time (500 milliseconds) to power some devices with a quick startup surge. With various protection circuits built in, this product will automatically shut down at low voltage or in the event of a sudden change of input/output power. The inverter also shows excellent performance and reliability control during rapid environmental changes such as ambient temperature.

Features
  • 3000 Watt continuous power
  • 6000 Watt surge
  • 24 Volt DC input
  • Pure sine wave
  • 60hz or 50hz switch
  • Highly efficient - improved output at low voltage
  • 1 - GFCI Dual Outlet
  • Direct connect AC Terminal Block
  • Connector and cable for remote on/off switch
  • Isolated ground & neutral
  • Short circuit protection (GFCI and AC Breaker)
  • On/off switch
  • 5 Function Protection LED indicator
  • AC Breaker
  • Dual cooling fans thermally controlled
  • Instruction manual
  • 1 year tech support
  • 1 Year Warranty Parts and Labor replacement
Specifications
  • Continuous output power: 3000 Watts
  • Surge power capability (peak power): 6000 Watts
  • dc input / operating voltage: 21-32 Volts
  • Output voltage: 120 Volts ac
  • Output voltage regulation: +/- 3%
  • Output wave form: pure sine wave
  • Output frequency: 50/60 Hz
  • Battery low voltage alarm: 21 +/- 0.5 Volts
  • Battery low voltage shutdown: 20 v +/- 0.5 Volts
  • No load power consumption: fan off <0.45 DC amps or fan on <0.67 DC amps
  • THD: <5%
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -4 degrees Farenheit
  • Full load maximum operating temperature: 176 degrees Farenheit (automatic shutdown)
  • GFCI Resetable AC Outlet
  • High input voltage shutdown: 34V
  • Low input voltage shutdown: 20V
  • Internal blade fuse protection
  • Product size (L x W x H): 20.47” x 8.86” x 3.50”
  • Weight: 16.09 lbs unit boxed 20 lbs
