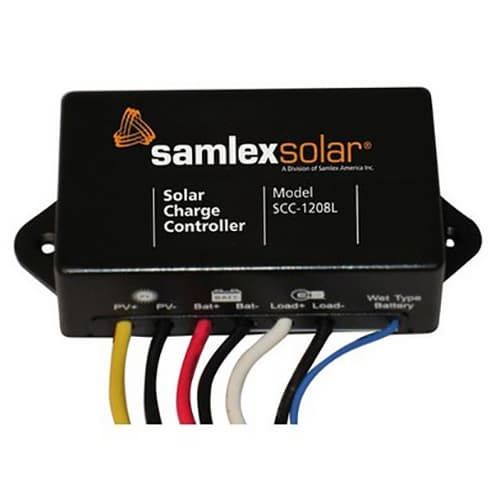

The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.
Design Features - Micro-controller based for automatic, intelligent operation
- Designed for 12 V nominal solar panels and 12 V battery systems
- 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
- For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
- Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
- Automatically turns on lights when dark and turns off during the day
- Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
- Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
- Wide operating temperature range of -40C to + 60C
- Product Manual | Download
- Product Specifications - EN | Download
Applications- Off-grid mobile rural systems
- Rural electrification
- Power supply for remote equipment
- Monitoring systems for the oil & gas industry
- Traffic, security, environment, and other remote monitoring and signaling systems
- Water pumping systems
| Input | 12V |
| Amps | 8 Amps |
| Weight | 0.28 (lbs) |
| Weight | 0.13 (kg) |
| Dimensions | 3.8 x 1.8 x 1.0 (in) |
| Dimensions | 9.65 x 4.57 x 2.54 (cm) |
| Safety | FCC, CE, IP65 |
| Warranty | 5 Year (Canada/US) |
