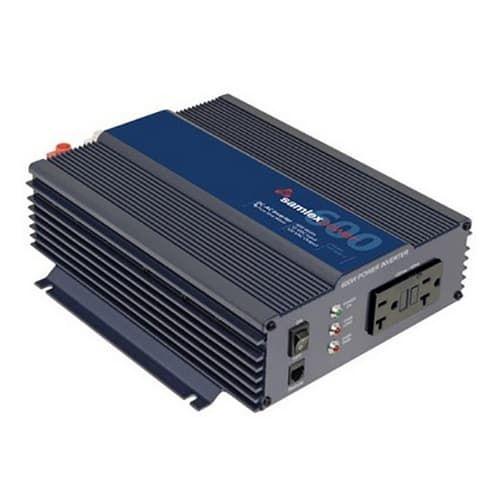

This high efficiency DC-AC inverter converts 24 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI overload protection low battery alarm / shut down low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Design Features- High efficiency
- Temperature controlled cooling fan-reduces energy consumption
- Low interference Wide operating DC input range: 21.4 - 33.0 VDC
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC-Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-15A

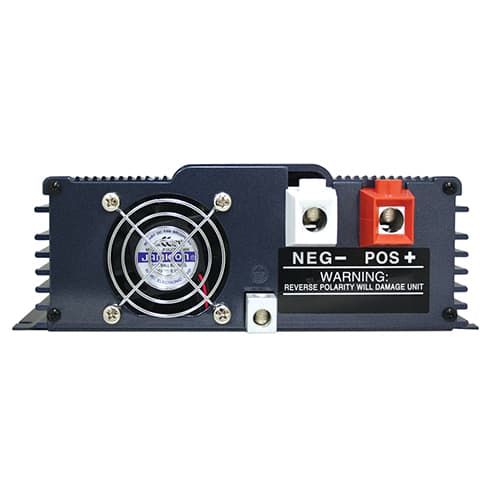

- Comes with pin-type battery cable lugs
- Safety certified to UL standards, FCC compliant
- Product Specifications | Download
- Product Manual | Download
- Product Manual - ES | Download
Applications - Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
| Input | 24 VDC |
| Output | 120 VAC |
| Watts | 600 Watts |
| Surge | 1000 Watts |
| Remote Control | RC-15A sold separately |
| Weight | 5.9 (lbs) |
| Weight | 2.7 (kg) |
| Dimensions | 10.87 x 9.47 x 3.23 (in) |
| Dimensions | 276.2 x 240.6 x 82 (mm) |
| Safety | ETL to UL Standards |
| Warranty | 2 Years (Canada/US) |
