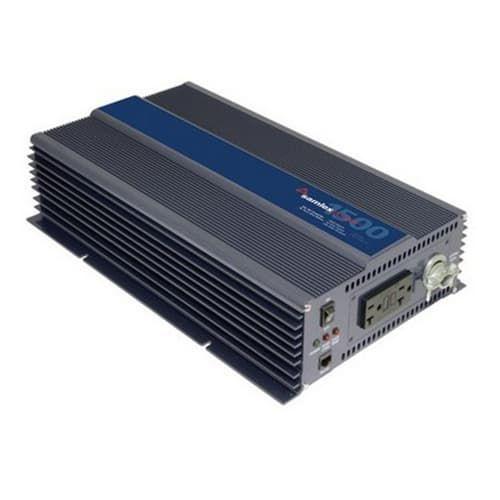

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts 60 Hz. The unit comes with pin-type battery cable lugs or can be hard-wired. Features include overload protection low battery alarm / shut down low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Design Features- High efficiency
- Can be hard wired
- Temperature controlled cooling fan-reduces energy consumption
- Low interference
- Wide operating DC input range: 10.7 - 16.5 VDC
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC-Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-200
- Safety certified to UL standards, FCC compliant
- Product Specifications | Download
- Product Manual | Download
- Product Manual - ES | Download
Applications - Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
| Input | 12 VDC |
| Output | 120 VAC |
| Watts | 1500 |
| Surge | 3000 Watts |
| Remote Control | RC-200 sold separately |
| Weight | 15.6 (lbs) |
| Weight | 7.1 (kg) |
| Dimensions | 18.43 x 10.35 x 4.16 (in) |
| Dimensions | 468.2 x 263 x 105.6 (mm) |
| Safety | ETL to UL Standard |
| Warranty | 2 Years (Canada/US) |
