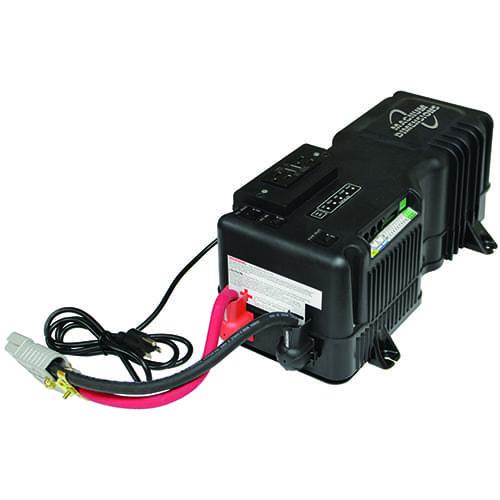

The Magnum-Dimensions MMSA Series Inverter/Charger from Sensata Technologies is a pure sine wave inverter providing a cost effective solution for those with smaller power needs in mobile applications. Ideal for Emergency Vehicles, the MMSA is versatile, easy-to-use, lightweight, and provides a reliable base for your energy system.
Connect with Ease The MMSA comes with DC cables with Anderson quick connectors, a GFCI outlet, and an AC input cord.
Auxiliary DC Output Port Add a small load, such as an interior lamp or backup camera, of less than 20 amps. MMSA must be connected to the battery for the AUX output to be available.
Power Factor Corrected (PFC) Charger Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.
Waterproof Panel The MMSA boasts a waterproof switch and LED panel for use in the most rugged territory.
Safe and Reliable The MMSA Series Inverter/Charger is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01 for mobile use.
Attractive Styling The modern, hourglass case, paired with the die cast aluminum base combines form with function, creating an attractive unit that uses its base as a heat sink for superior high temperature operation.
Standard Transfer Relay The standard 20 amp transfer relay will pass AC power through the inverter when using shore or generator power.
Versatile Mounting Mount the MMSA Series on a shelf, bulkhead (with DC terminals to the right), or even upside down.
Low/High Battery Protection If your battery voltage reaches below 10 VDC or above 17 VDC, the MMSA Series will automatically shut down.
Fan Cooled The MMSA Series is fan cooled, enabling the unit to work well in confined spaces. If the inverter does exceed its temperature limits, it will automatically shut down and then restart when it cools down.
Current Overload Protection The MMSA Inverter/Charger will automatically shut down if its output wattage is exceeded or it detects a short in the wiring, saving the unit from costly damage.
Integrated Programming The MMSA Series comes with an on/off front-mounted switch with an easy-to-read LED indicator. And easily toggle through settings with the accessible DIP switch.
Battery Temp Sensor Automatically adjusts the voltage set-points based on temperature for better charging performance and longer battery life.
Buy with Ease The MMSA Inverter/Charger is backed by a two-year (24-month) parts and labor warranty.
