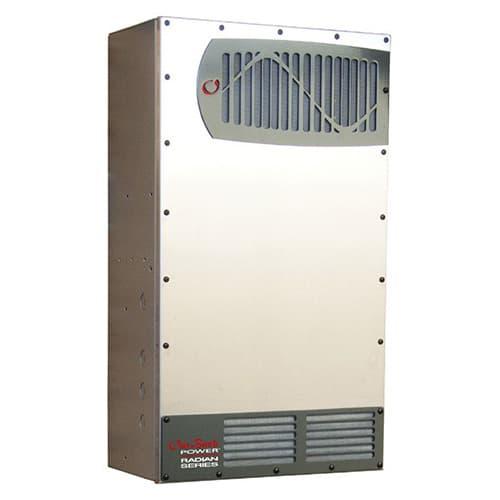

Outback Power, GS8048A-01, 8.0 kW, 48 VDC, 120/240 VAC 50/60 Hz Grid-Interactive and Standalone Solution with dual AC inputs and advanced features. Includes mounting plate, hardware and RTS. Listed to UL1741-SA
Manufacturer Info
The Radian Series GS8048A and GS4048A Grid/Hybrid (full-flexibility grid-interactive/off-grid) Inverter/Charger is engineered toward one goal: making system design and installation easier and faster in grid-interactive and comprehensive off-grid applications. The new Radian Series inherit the hallmark features of the original design, including: dual AC inputs for grid/generator flexibility with no external switching required, unparalleled surge capability and operational stability, easy field upgradeability and stacking capability for large system scaling, simplified system commissioning through a powerful, easy-to-use configuration wizard, and multi-mode operational flexibility.
In addition, both models have a new Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as Lithium-Ion and others, and enhanced diagnostics for improved performance. And both incorporate OutBacks GridZero technology, a superior level of intelligence in energy management for self-generation and self-consumption programs, providing precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes when needed. GridZero operation makes it possible for a smaller inverter and battery system to perform like a much larger one when required, putting stored and renewable energy sources to work and minimizing grid dependence. GridZero technology make the new Radians ideal for use in complex utility environments such as California and Hawaii.
The GS8048A and GS4048A are certified to UL1741 for US applications, and CSA C22.2 No. 107.1 for Canada, and is IEC 62109-1 certified to meet the most stringent worldwide PV safety and emission standards.
This product is for selected North, Central and Latin American markets.
Product Highlights
In addition, both models have a new Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as Lithium-Ion and others, and enhanced diagnostics for improved performance. And both incorporate OutBacks GridZero technology, a superior level of intelligence in energy management for self-generation and self-consumption programs, providing precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes when needed. GridZero operation makes it possible for a smaller inverter and battery system to perform like a much larger one when required, putting stored and renewable energy sources to work and minimizing grid dependence. GridZero technology make the new Radians ideal for use in complex utility environments such as California and Hawaii.
The GS8048A and GS4048A are certified to UL1741 for US applications, and CSA C22.2 No. 107.1 for Canada, and is IEC 62109-1 certified to meet the most stringent worldwide PV safety and emission standards.
This product is for selected North, Central and Latin American markets.
Product Highlights
- Grid-interactive and stand-alone capability in the same package
- 8000 and 4000 Watts of continuous power, respectively
- GridZero Technology minimizes grid dependence
- Unsurpassed surge capacity
- Field adjustable input/output voltage and frequency boundries
- Dual AC inputs
- Field serviceable modular design
- GSLC load center option allows for quick and easy installation
- Product Specifications | Download
- FW-X240 - Product Manual | Download
GS8048A | GS4048A | |
---|---|---|
Nominal DC Input Voltage | 48 VDC | 48VDC |
Continuous Output Power at 25 C | 8000 VA | 4000 VA |
AC Output Voltage/Frequency | 120/240VAC, 60Hz (50Hz) | 120/240VAC, 60Hz (50Hz) |
Continuous AC Output Current at 25 C | 33.3AAC @ 240VAC | 16.7AAC |
Idle Consumption - Invert mode, no load | 34 Watts | 34W |
Typical Efficiency | 93% | 92.5% |
Harmonic Distortion | Maximum Total Harmonic: <5%Maximum Single Voltage Harmonic: <2% | Maximum Total Harmonic: <5%Maximum Single Voltage Harmonic: <2% |
Output Voltage Regulation | 2% | 2% |
Maximum Output Current | 1 ms Peak: 100 AAC @ 240VAC, 200AAC @ 120VAC1 ms RMS: 70.7 AAC @ 240VAC | 1 ms Peak: 50AAC @ 240VAC1 ms RMS: 35.35 AAC @ 240VAC |
Overload Capability | 100 ms Surge: 16.97 kVA5 seconds: 12 kVA30 minutes: 9 kVA | 100 ms Surge: 8.5 kVA5 seconds: 6.0 kVA30 minutes: 4.5 kVA |
Maximum AC Input Current | 50AAC @ 240VAC | 50AAC |
AC Input Voltage Range (Adjustable) | (L1 or L2) 70 to 280VAC | (L1-N or L2-N) 85 to 140VAC |
AC Input Frequency Range | 45 to 55Hz @ 50Hz (55 to 66Hz @ 60Hz) | 45 to 55Hz @ 50Hz (54 to 66Hz @ 60Hz) |
Grid-Interactive Voltage Range | (L1-N or L2-N) 106 to 132VAC | (L1-N, L2-N) 108 to 132VAC, default |
Grid-Interactive Frequency Range | 59.3 to 60.5Hz | 59.3 to 60.5Hz |
DC Input Voltage Range | 40 to 64VDC | 40 to 64VDC |
Continuous Battery Charge Output | 115.5 ADC | 57.5 ADC |
Temperature Range | Rated: -20 to 50C (power derated above 25C)Maximum: -40 to 60C* | Rated: -20 to 50C (power derated above 25C)Maximum: -40 to 60C* |
Weight | Unit: 125 lbs (56.7 kg)Shipping: 140 lbs (63.5 kg) | Unit: 82 lbs (37.2 kg)Shipping: 94 lbs (42.6 kg) |
Dimensions (HxWxD) | Unit: 28 x 16 x 8.7 (71.1 x 40.6 x 22.1 cm)Shipping: 34.5 x 21 x 14.5 (87.6 x 53.3 x 36.8 cm) | Unit: 28 x 16 x 8.7 (71.1 x 40.6 x 22.1 cm)Shipping: 34.5 x 21 x 14.5 (87.6 x 53.3 x 36.8 cm) |
Accessory Ports | Remote Temperature Sensor andMATE3/HUB Communications | Remote Temperature Sensor andMATE3/HUB Communications |
Non-Volatile Memory | Yes | Yes |
Field Upgradable Firmware | Yes | Yes |
Chassis Type | Vented | Vented |
Certifications | Listed to UL1741, CE, CSA C22.2 No. 107.1, IEC62109-1, AS4777.2, AS4777.3, EN61000-6-1,EN61000-6-3, EN61000-3-2, EN61000-3-3, AS3100, RoHS compliant per directive 2011/65/EU | Listed to UL1741, CE, IEC-62109-1 ETL, CSA C22.2 No. 107.1, RoHS compliant per directive 2011/65/EU, FCC Class B, EN61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3 |
Warranty | Standard 5-Year Warranty | Standard 5-Year Warranty |
