Manufacturer Info

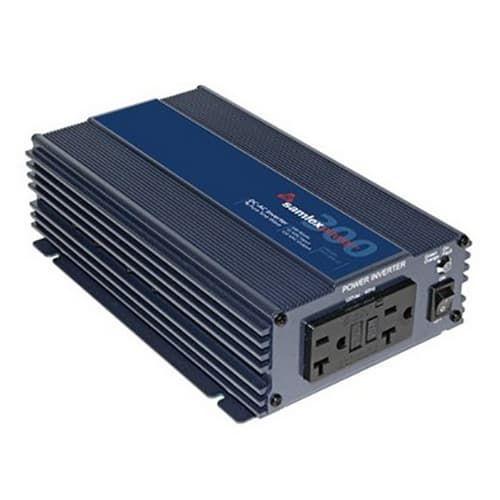

This high efficiency DC-AC inverter converts 12 Volts DC to 300 Watts of pure sine-wave AC power at 120 Volts 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection low battery alarm / shut down low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Design Features
Design Features
- High efficiency
- Temperature controlled cooling fan-reduces energy consumption
- Low interference Wide operating DC input range:10.5 - 16.5 VDC
- LED indicators for power and protections
- Low idle power draw
- Dual GFCI protected AC outlets
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC-Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Detachable cable with 12V plug adapter
- Detachable cable with battery clamps
- Safety certified to UL standards, FCC compliant
- Product Specifications | Download
- Product Manual | Download
- Product Manual - ES | Download
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
Input | 12 VDC |
Output | 120 VAC |
Watts | 300 |
Surge | 500 Watts |
Outlets | 2 |
Weight | 3.46 (lbs) |
Weight | 1.57 (kg) |
Dimensions | 9.69 x 5.76 x 2.58 (in) |
Dimensions | 246 x 146.3 x 65.5 (mm) |
Safety | ETL to UL Standard |
Warranty | 2 Years (Canada/US) |
