Features - 'Output ON' and "Charging" LED indicators
- Up to 80V input
- Compact size and easy mounting
- Simple plug in wiring
- Heavy duty ruggedization with wide temperature range
- Custom output voltages available
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download

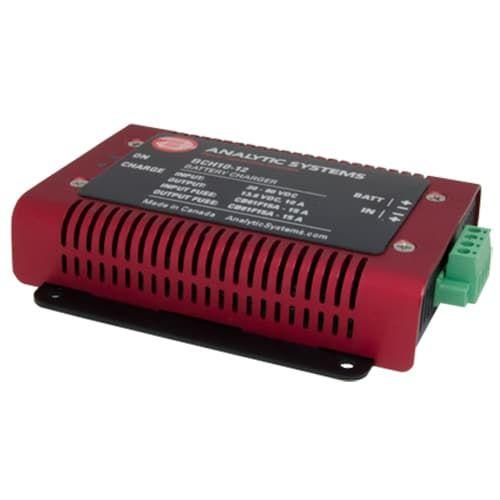

The BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments. The output voltage is configured to allow permanent connection to the battery.
All surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.
The unit has reverse input protection, reverse battery connection protection, and output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.
| Function | Battery Charger |
|---|
| Conversion | DC to DC |
|---|
| Power Level | 480 |
|---|
| Input Volts | 60 - 80 VDC |
|---|
| Output Volts | 48 VDC |
|---|
| Output Amps Continuous | 10 |
|---|
| Input/Output Isolation | No |
|---|
| Technology | Analog |
|---|
| Charging Stages | 2 |
|---|
| Temperature Compensation | No |
|---|
| Equalize | No |
|---|
| Battery Banks | 1 |
|---|
| Product Series on website | BCH10 |
|---|
| Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'C' MIL461F & MIL810G Tested |
|---|
