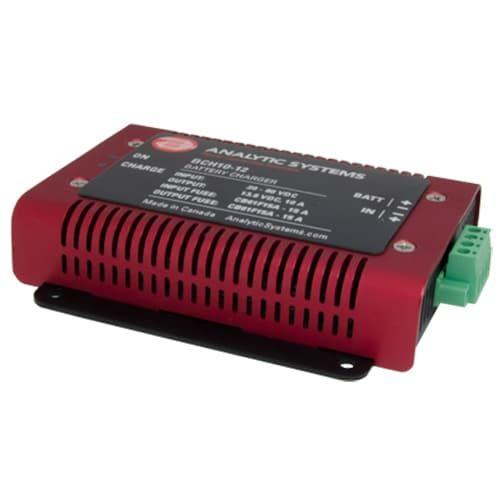

Analytic Systems, BCH10-12, 10A, 12V Out, 20-80V In, Non-Iso, DC/DC Battery Charger
Manufacturer Info
Features
All surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.
The unit has reverse input protection, reverse battery connection protection, and output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.
- 'Output ON' and "Charging" LED indicators
- Up to 80V input
- Compact size and easy mounting
- Simple plug in wiring
- Heavy duty ruggedization with wide temperature range
- Custom output voltages available
- Three year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
All surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 48 VDC Out) and minimum size.
The unit has reverse input protection, reverse battery connection protection, and output over-voltage protection and features spark free connection to the battery. Smart Ideal Diode output circuitry prevents any reverse current flowing from the battery back into the converter.
Function | Battery Charger |
---|---|
Conversion | DC to DC |
Power Level | 120 |
Input Volts | 20 - 80 VDC |
Output Volts | 12 VDC |
Output Amps Continuous | 10 |
Input/Output Isolation | No |
Technology | Analog |
Charging Stages | 2 |
Temperature Compensation | No |
Equalize | No |
Battery Banks | 1 |
Product Series on website | BCH10 |
Option Codes | 'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'X' Ruggedized & Wide Temp, 'W' IP66 Water Resistant, 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'F' Electric Fork Lift, 'C' MIL461F & MIL810G Tested |
