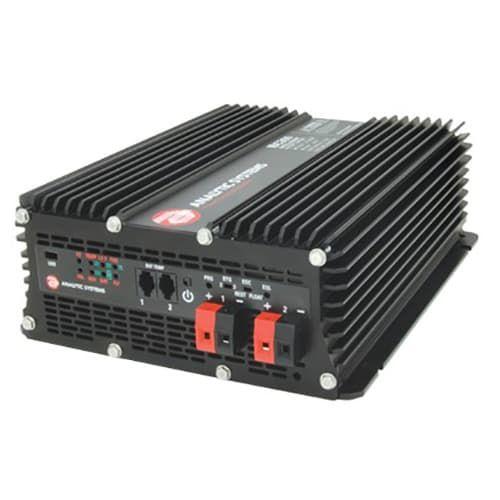

The IBC320 Intelligent Battery Charger provides up to 300 watts to charge a 12, 24, 36 or 48 volt, one or two bank battery system (batteries must share a common ground). The charger is preprogrammed for Flooded (traditional Lead Acid), AGM (Absorbed Glass Mat Lead Acid) and Gel or VRLA (Valve Regulated Lead Acid). It also has a 4th custom program where all charging parameters can be adjusted to suit a particular type of battery including bulk charging current, absorption voltage, float voltage, temperature compensation and more.
This charger uses advanced Power Factor Correction circuitry on the AC input so it will work from any standard AC voltage anywhere in the world. LLC Resonant Converter Technology allows Zero Voltage/Zero Current switching on the Primary or high voltage side of the main power transformer, and Active Rectification on the Secondary or Low Voltage side offers maximum efficiency and lowest Electromagnetic Interference (EMI) to ensure that the IBC320 does not disturb sensitive voice or data RF communication equipment.
Eight dual color LEDs and audible alert clearly indicate charging levels and stages as well as indicating faults with either the charger or the batteries. The PowerWizard software that is free to download adds advanced charging algorithm programming and charger monitoring as well as a graphing function through the built in USB port. Safety features include charger and battery over temperature shutdown, current limiting, short circuit protection, input under voltage shutdown and output over-voltage protection, all with automatic recovery. We are so confident that you will get years of reliable service from this Intelligent Battery Charger that we have backed it with a Five Year Warranty!
Features- State of the art Digital Signal Processor
- LLC resonant converter technology
- Synchronous Rectification
- Worldwide Universal AC Input with PFC
- Advanced Charging Algorithms
- Programmable from front panel
- Includes ‘PowerWizard’ software for advanced programming through standard USB port
- Military-Grade extrusion ensures a high tolerance for shock and vibration
- High Efficiency
- Ultra-quiet low EMI operation
- Can be permanently connected to batteries
- Optional Dry contact output fail relay
- Optional Custom Battery Voltages
- User selectable 2 or 3 stage charging profile
- User selectable Float or Rest ‘End of Charge’
- Temperature compensated charging
- Battery Over-temperature shutdown & recovery
- Charger Over-temperature shutdown& recovery
- Audible & visual indicators for operation and errors
- Output short circuit protection
- Output over-voltage protection
- Inrush Current Limiting
- Worldwide AC Input
- Five Year warranty
- Product Specifications | Download
- Product Manual | Download
Applications- Marine
- (Commercial and Recreational)
- Industrial
- Military and DHS
- Electric Utilities and Substations
- OEM Applications
- Emergency Power Backup (UPS)
- Security Systems
| Volts | 85 - 265VAC, 1 Phase, 45 - 65 Hz |
|---|
| Current (max)* | 4 Amps w/ Inrush Protection |
|---|
| Input Fuse | AGC 5 Amp |
|---|
| Power Factor | >0.99 at Full Load |
|---|
| Efficiency | >90% at Full Load |
|---|
| * | Maximum Input Current Specified at 85 VAC |
|---|
| Nominal Voltage | 12 VDC | 24 VDC | 32 VDC | 48 VDC |
|---|
| Voltage Range ** | 12.0 - 15.5 VDC | 24.0 - 31.0 VDC | 36.0 - 46.5 VDC | 48.0 - 62.0 VDC |
|---|
| Output Current | 20 Amps | 10 Amps | 6.8 Amps | 5 Amps |
|---|
| Recommended Battery Amp-Hours | 100 | 50 | 37 | 25 |
|---|
| Charging Stages | 2 or 3 stage user selectable |
|---|
| End of Charge | Float or Rest user selectable |
|---|
| ** | Actual Output Voltage determined by User Settings or by Charger Firmware |
|---|
| Dimensions | 9.5"/24.1cm Long x 8.0"/20.3cm Wide x 3.25"/8.3cm High |
|---|
| Clearance | 1.0" / 2.5cm all around |
|---|
| Weight | 6.2 lb / 2.8 kg |
|---|
| Material and Finish | Marine Grade Black Anodized Aluminum with 18-8 Stainless Fasteners |
|---|
| Mounting | Wall or Shelf Mount |
|---|
| Connections | Integrated Color Coded Terminal Blocks |
|---|
| Operating Temperature Range | -25C to +40C (-40C to +55C Optional) |
|---|
| Storage Temperature Range | -55C to +85C |
|---|
| Humidity | 0 - 95% Relative Humidity (non-condensing) |
|---|
| Vibration | Built to meet MIL810g |
|---|
| Emissions | Built to meet MIL461f |
|---|
| Isolation | > 1500 VDC Input-Output, Input-Case, Output-Case |
|---|
| Audible Noise | None |
|---|
| Duty Cycle | Continuous |
|---|
| Warranty | Five Years Parts and Labour |
|---|
| Safety | Built to meet ABS, CE, UL458 and CSA 22.2.107.1 |
|---|
