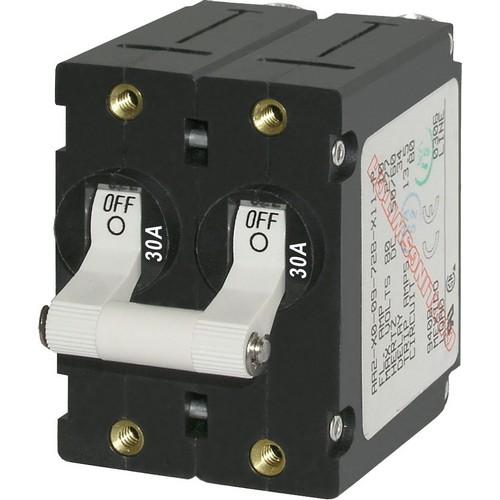

Blue Sea Systems, 7238, A-Series White Toggle Circuit Breaker - Double Pole 30A

Model: 7238
GTIN: 0032085072384
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Oct 8th - Oct 14th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$98.25 $75.57

Manufacturer Info

Other products

A-Series White Toggle Circuit Breaker - Double Pole 30A

Meets American Boat and Yacht Council (ABYC) standards
The industry standard circuit breaker for Blue Sea Systems' electrical panels
Combines switching and circuit protection into a single device
"Trip Free" design cannot be held "ON" during fault current condition

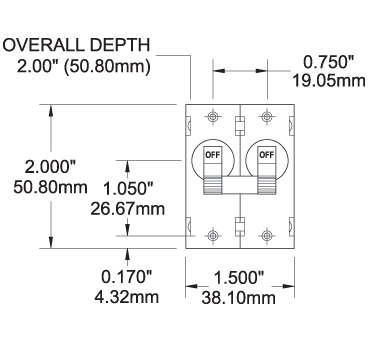

Dimension Drawing | Download

Specifications
Amperage	30A AC30A DC
Color	White
Actuator Style	Toggle
Poles	2
Maximum Voltage	120V AC240V AC65V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 120V AC3000A @ 240V AC1500A @ 240V AC [TUV]3000A @ 240V AC [UL 1077]7500A @ 65V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Screw Terminal Torque	14 in-lb (1.58 Nm)
Switching Cycles	10000
Terminal Screws	#10-32 Stainless Steel
Weight	0.30lb (0.14 kg)
Weight	0.30lb (0.14 kg)
