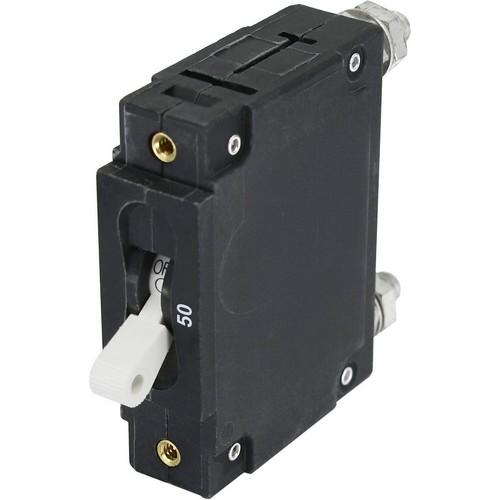

Blue Sea Systems, 7244, C-Series White Toggle Circuit Breaker - Single Pole 50 Amp

Model: 7244
GTIN: 00632085072445
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Oct 8th - Oct 14th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$106.13 $81.64

Manufacturer Info

Other products

C-Series White Toggle Circuit Breaker - Single Pole 50 Amp'

Provides overcurrent protection for inverters, bow thrusters, and windlasses
Combines switching and circuit protection into a single device
Trip Free"—cannot be held closed after trip
Cutout Templates | Download
Instructions | Download

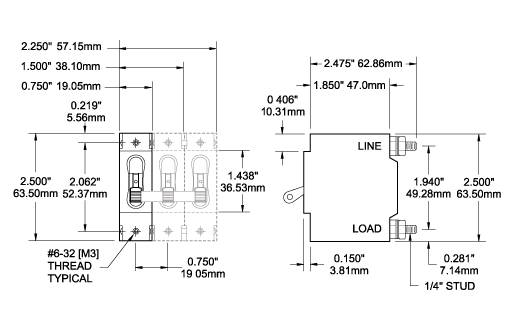

Dimension Drawing | Download

Specifications
Amperage	50A AC50A DC
Color	White
Actuator Style	Toggle
Poles	1
Maximum Voltage	240V AC80V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Terminal Stud	1/4-20 Tin-Plated Brass
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	5000A @ 125V AC5000A @ 240V AC10000A @ 80V DC
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.36lb (0.16 kg)
