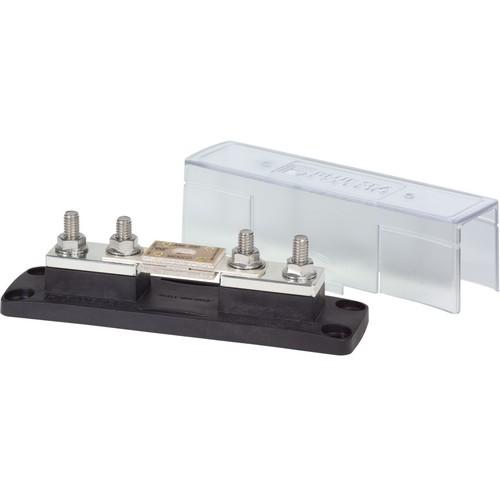

Blue Sea Systems, 5503, ANL Fuse Block with Insulating Cover - 35 to 750A

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 5503, ANL Fuse Block with Insulating Cover - 35 to 750A

Model: 5503
GTIN: 00632085055035
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Oct 8th - Oct 14th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$98.06 $75.43

Manufacturer Info

Other products

ANL Fuse Block with Insulating Cover - 35 to 750A

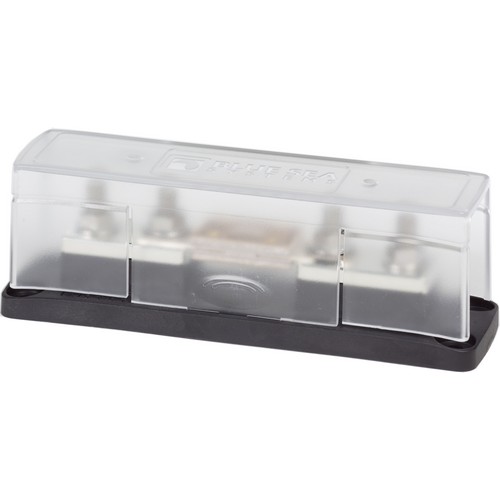

Cover included
Accepts 5/16" (M8) ring terminals
For use on systems up to 32 Volts DC
Swing out design allows replacement of the fuse without removing fasteners
Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
UL 94-V0 base resists high heat
Insert molded studs ensure secure fuse mounting
Insulating cover satisfies ABYC/USCG requirements
Cover breakouts allow wire access in any direction
Fuse sold separately

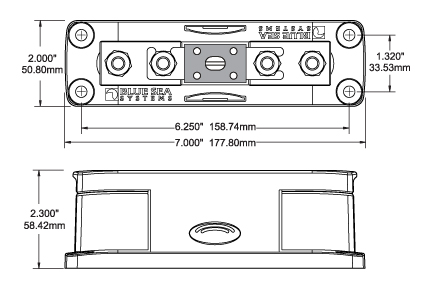

Dimension Drawing | Download

Specifications
Maximum Voltage	32V DC
Stud Size	5/16"
Base Material	Reinforced Polycarbonate
Fuse Mounting Blocks	Tin-Plated Copper
Maximum Cable Size	4/0 AWG
Maximum Torque	107 in-lb (12.09 Nm)
Stud Torque	107 in-lb (12.09 Nm)
Terminal Stud Size	5/16" - 18 (M8)
Weight	1.06lb (0.48 kg)
