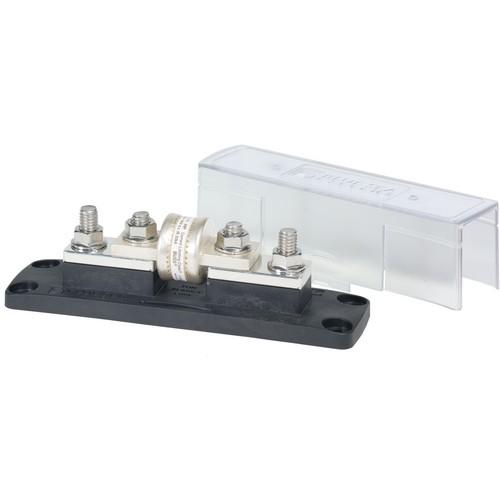

Blue Sea Systems, 5502, Class T Fuse Block with Insulating Cover - 225 to 400A

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 5502, Class T Fuse Block with Insulating Cover - 225 to 400A

Model: 5502
GTIN: 00632085055028
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Oct 8th - Oct 14th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$103.56 $79.66

Manufacturer Info

Other products

Class T Fuse Block with Insulating Cover - 225 to 400A

The fuse system recommended by most inverter manufacturers for high speed response to short circuits

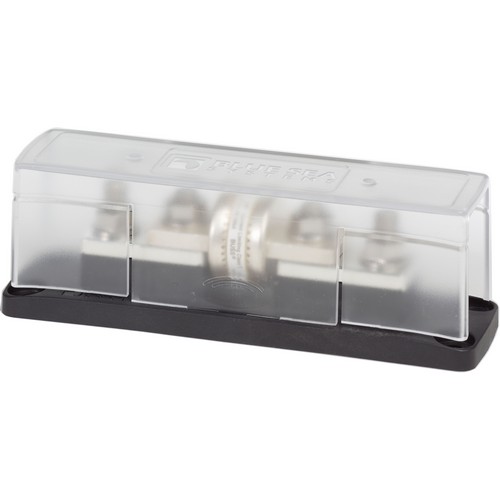

Clear insulating cover, satisfies ABYC/USCG requirements
For use on systems up to 160 Volts DC
Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
Large heat dissipating tin-plated copper mounting blocks
Fuse sold separately

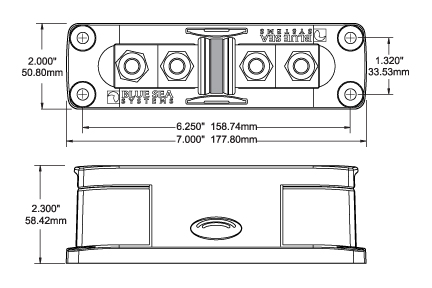

Dimension Drawing | Download

Specifications
Ignition Protected	No
Maximum Amperage	400A
Maximum Voltage	160V DC
Fuse Mounting Blocks	Tin-Plated Copper
Maximum Cable Size	4/0 AWG
Maximum Torque	190 in-lb (21.47 Nm)
Mounting Holes	Accept 1/4 (M6) Screw
Terminal Stud Size	3/8" - 16 (M10)
Weight	1.10lb (0.5 kg)
