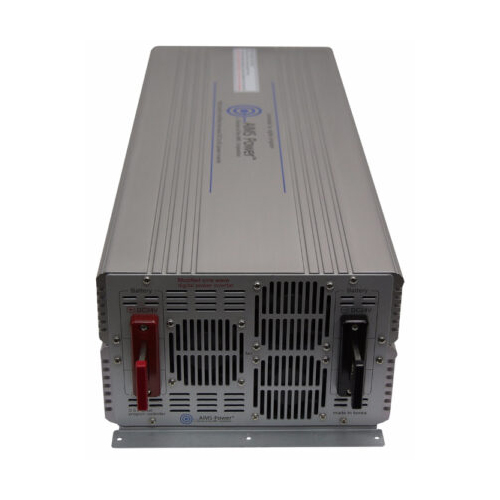

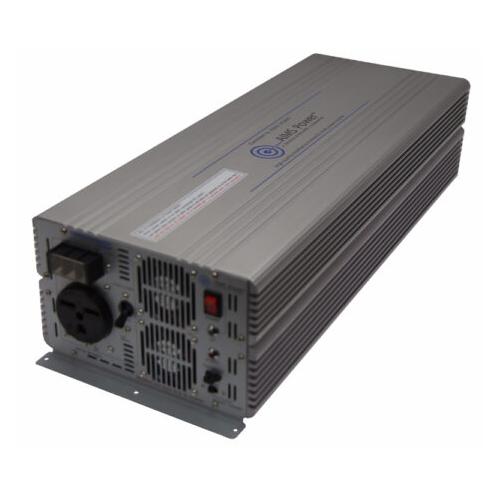

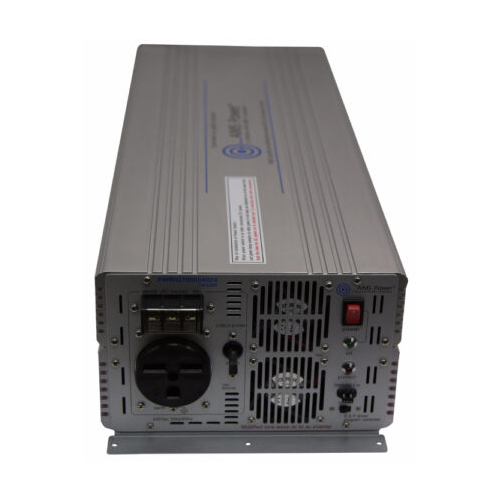

NEW 7000 Watt Power Inverter PURE Sine 24Vdc to 240Vac Industrial Grade Single Phase 50/60 hzPure Sine 240V AC only. Single phase. Pumps, motors and other 220V, 230V and 240V AC equipment.
UPGRADED to PURE SINE. Delivers 7000 watts of rugged 240V power with industrial durability, long surge capacity, and stable output for demanding equipment.The AIMS Power 7000 Watt Industrial Grade PURE Sine Wave Power Inverter is engineered for heavy duty applications where dependable AC power is essential. Converting 24V DC battery power into stable 240V AC electricity, this inverter provides the output required to run high-demand equipment including pumps, compressors, power tools, and multiple appliances. Its digitally outputted and phase corrected design helps maintain consistent voltage and frequency, even when battery levels fluctuate or loads surge.
Single phase only. This inverter does NOT output two legs of 120V.Built for demanding environments, the rugged construction performs reliably in high vibration conditions and wide temperature ranges. This makes it a dependable solution for off-grid power systems, job sites, mobile power setups, or small home backup systems.
- Users: Run high demand equipment such as pumps, compressors, power tools, appliances, and off-grid systems with dependable 240V AC power.
- Installers: Direct connect terminal block supports full load wiring, while selectable 50/60 Hz operation simplifies system configuration.
**Single phase only. It does NOT put out 2 legs of 120 V. Backed by a 2 year warranty and lifetime tech support.Features - High Continuous Power Output: Provides 7000 watts of continuous power, supplying enough electricity to operate demanding equipment and multiple loads. 240V AC single phase only.
- Extended Surge Capacity: Handles up to 14,000 watts of surge power for up to 9 seconds, allowing equipment with higher startup demands to operate reliably.
- Digitally Controlled Power Stability: Digitally outputted and phase corrected inverter design helps maintain consistent voltage and frequency for cleaner AC power delivery.
- Selectable Frequency Operation: Built-in frequency switch allows installers to select either 50 Hz or 60 Hz output for compatibility with various equipment and regions.
- Direct Connect Terminal Block: Supports secure full load wiring for high power installations where direct AC connection is required.
- Integrated System Monitoring: LED indicators display system status including power, overload, and over temperature conditions, while the load usage LED bar shows power consumption.
- Rugged Reliability: Heavy duty aluminum case supports optimal cooling while protecting internal components in high vibration environments and extreme temperatures.
Specifications - Continuous output power: 7000 Watts
- Surge power capability (peak power): 14000 Watts
The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14000 watts. During this time the buzzer will sound until the inverter electronically shuts down.
- DC input / operating voltage: 20-30 Volts
- Output voltage: 247 Volts ac +/- 10%
- Output wave form: pure sine
- Output frequency: 50/60 Hz +/- 1 Hz
- Battery low voltage alarm: 20 +/- 0.5 Volts
- Battery low voltage shutdown: 19.5 +/- 0.5 volts
- High input voltage protection 34 +/-0.5 volts
- No load current: 200mA
- Start up AC amps: 58
- Continuous AC amps: 29
- Full load efficiency: 90%
- Auto Cooling Fan Start at 107 degrees F
- Full load maximum operating temperature: 163 degree F
- AC Output Socket Type: single 240 volt plug
- Internal fuse protection
- Product size (L x W x H): 22.5” X 10” X 6.5”
- Weight: 27 lbs box, unit 20 lbs
