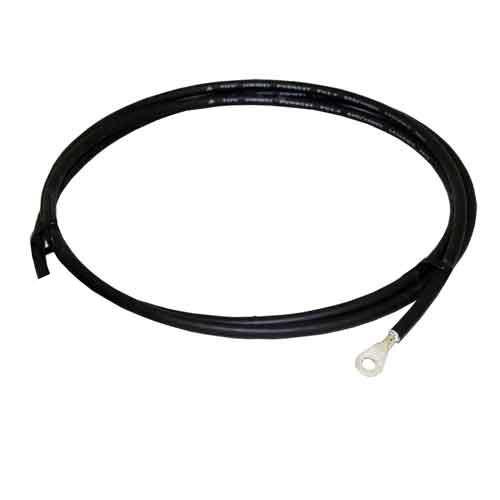

50FT. Cut to lugged end. Lug is 3/8".The UL List 10 AWG PV cable is designed for all solar applications. We offer male (-) and female (+) ends, cut ends and lugged ends. Perfect for multiple solar panels or connecting solar panels to a charge controller and charge controller to batteries. Weatherproof, high quality cables offered in several lengths.
- Voltage rating: 600 V
- Tinned copper OD 2.59mm
- Temperature rating:
- 90 °C dry or wet
- 194 °F dry or wet
- Ambient temperature: > 25 years (TÜV)
- – 40 °C up to + 90 °C
- – 40 °F up to + 194 °F
- Max short circuit temperature: 250 °C, +482 °F
- Bending radius: ? 5 × outer diameter
- Structure: 75/0.30 TC
- Conductor: ID 3mm
- XLPE Thickness: .72 mm
- Jacket: OD 6.4 mm
- Weight: 30ft 2 lbs
- Allow: Current 49.6A
- Conductor Resistance ?/km: 3.59
- UL4703
