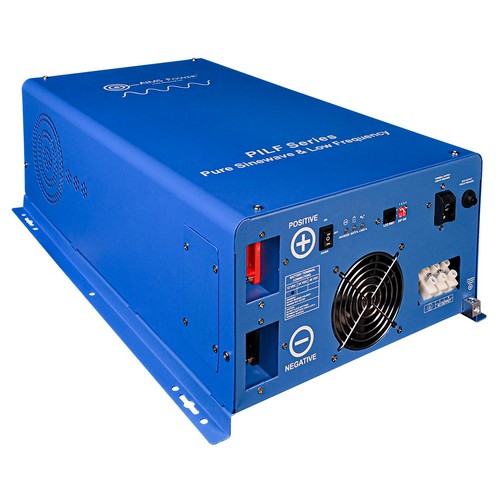

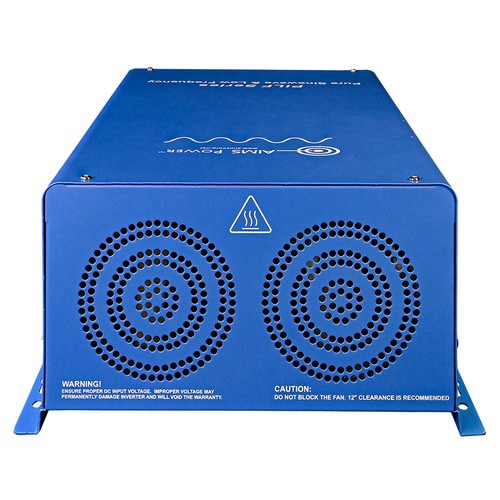

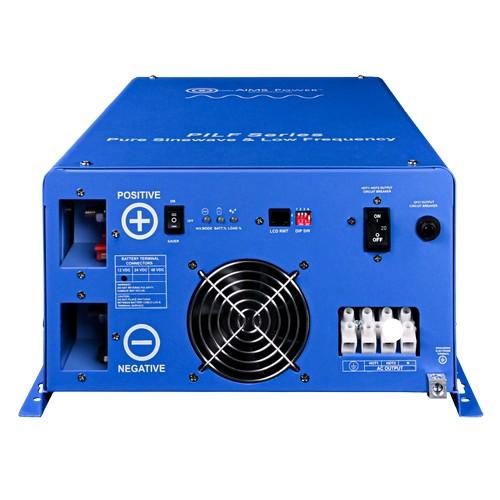

Industrial 3000 Watt 120/240 VAC 12V Low Frequency Pure Sine Inverter 120/240 VAC ETL Listed Conforms to UL458/CSA Industrial Grade 3000W 120/240 VAC Split Phase Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding ApplicationsExperience uncompromising power reliability with the AIMS Power 3000W Pure Sine Power Inverter. Engineered to deliver true 120/240VAC split phase power with a true neutral – virtually identical to grid power.
Engineered for demanding environments, this inverter delivers a massive 9,000-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage—even as battery levels drop—making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, GFCI outlets for added safety, hard wire terminal for convenience, and an optional LCD remote panel for convenient monitoring.
Ideal for professional-grade applications - Utility and service trucks requiring grid-quality power
- Mobile workshops, food trucks, and field service vehicles
- Off-grid homes, cabins, and emergency backup systems
- Remote construction sites and solar/battery backup installations
BACKED BY A 3 YEAR WARRANTY & LIFETIME TECH SUPPORT.Features - 3000W – 25 Amps Continuous Power – Handles demanding loads with ease
- 9,000W Surge Capacity – Powers high-startup equipment for 20 seconds
- 120/240 VAC split phase
- ETL Listed Conforms to UL458 Standards & CSA
- Pure Sine Wave Output – Clean power safe for most devices

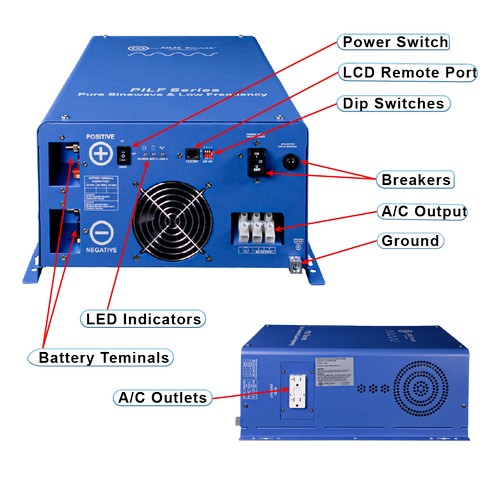

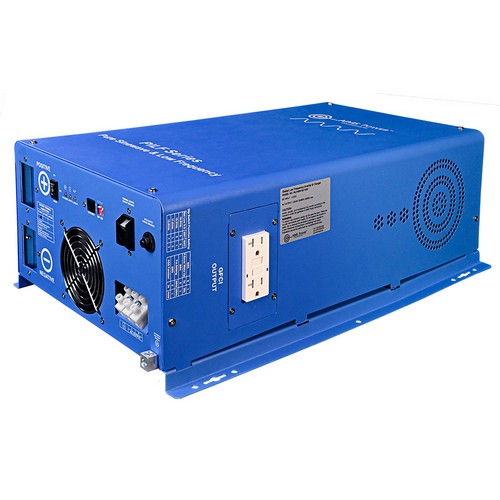

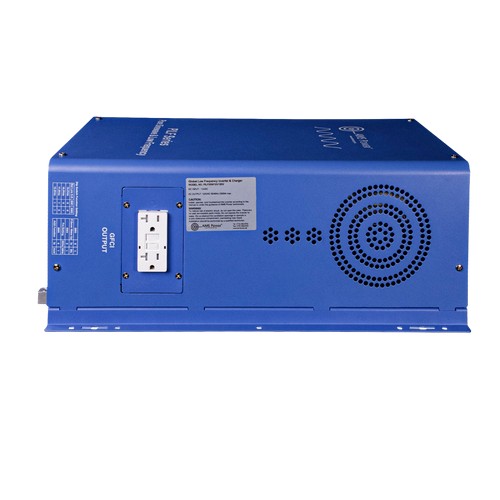

- Single GFCI Duplex receptacle – Enhanced safety protection
- Hard wire terminal for full output capacity
- DSP Technology – Advanced digital signal processing for optimal performance
- Harsh Environment Ready – Built to withstand tough conditions

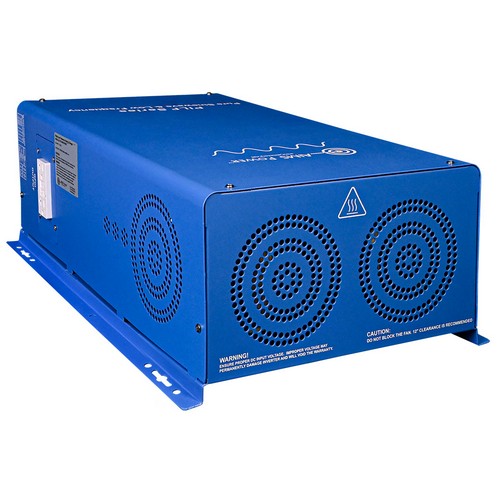

- 3-Step Controlled Fan – Quiet operation with efficient cooling
- Voltage Regulation – Stable output regardless of battery voltage fluctuations

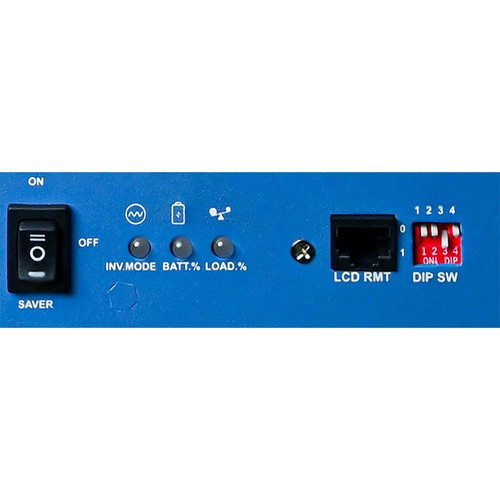

- Optional LCD display for convenient monitoring- REMOTELF
- Power Save Mode – Energy conservation when no load present
- Overload protection
- Low and high voltage protection
- Short circuit protection
- Low and high temperature protection
- Conformal coated
- 50Hz & 60Hz
- 2 Year Warranty
- Lifetime Tech support
- AIMS PILF MAN 071725 | Download
| Electrical Specifications |
| Power Inverter Model- PILF Series | PILF30W12V120V / PILF30W12V240V |
| Power Inverter Output | Continuous Power Watt | 3000 |
| Surge Rating(20s) Watt | 9000 |
| Capable of Electric Motor | 3.0HP |
| Output Waveform | Pure Sine wave |
| Nominal Efficiency | Up to 88% |
| Power Factor | 0.9-1.0 |
| Nominal Output Voltage | 120Vac (Single Phase) or 120/240Vac (Split Phase PILF30W12V240V ONLY) |
| Output Voltage Regulation | ±10% RMS |
| Output Frequency | 50/60Hz ± 0.3Hz |
| Short Circuit Protection | Yes, Current Limit Function (Fault after 1sec) |
| THD | Typically-<3%, Max 10% under full linear load |
| DC Input | Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc / 11.0Vdc /11.5Vdc / 12.5Vdc |
| Low Battery Trip | 10.0Vdc / 10.5Vdc /11.0Vdc / 12.0Vdc |
| High Voltage Alarm & Fault | ?16.0Vdc |
| High DC Input Recovery | ?15.5Vdc |
| Low Battery Voltage Recover | ?13.0Vdc |
| Idle Consumption-Search Mode | < 2.5W when Power Saver On Mode |
| Remote Control | Yes. Optional |
| Display | Tri-Color LEDs |
| Physical Specs | Mounting | Wall Mounted or Flat Placement- Any orientation except upside down (top facing down) |
| Inverter Weight | 57lbs |
| Shipping Weight | 68lbs |

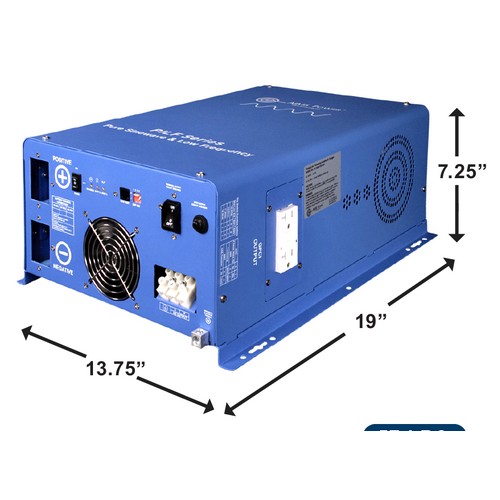

| Inverter Size LxWxH inches | 19 x 13.75 x 7.25 |
| Shipped Size | 24 x 18 x 12 |
