DC to DC Step Down Converter 48V to 12V 10 AmpConvert 48V power to stable 12V output with a rugged 10A DC-DC converter built for dependable mobile and automotive power systems.
The AIMS Power 10 Amp 48V to 12V DC-DC Converter delivers reliable voltage step down power for automotive, mobile, and off-grid electrical systems that operate on 48V battery banks but require stable 12V output. Built with advanced digital technology and strict quality control standards, this converter provides consistent performance for demanding applications where dependable DC power is critical.
Designed for both installers and the Do It Yourselfer, the converter uses a straightforward terminal block connection for DC input and output, making installation simple and secure. Multiple protective features safeguard connected equipment while the aluminum case improves cooling and long term durability.
- Users: Safely power 12V electronics and accessories from a 48V battery system with efficient >90% conversion performance.
- Installers: Simple terminal block wiring, integrated protections, and a clear LED power indicator streamline installation and diagnostics.
Features - Reliable 48V to 12V Voltage Conversion: Efficiently steps down 48V DC input to stable 12.5–13.5V output, allowing 12V electronics and systems to run safely from higher voltage battery banks.
- High Conversion Efficiency: Greater than 90% efficiency minimizes energy loss and heat generation, helping maximize available power in mobile and off-grid electrical systems.
- Comprehensive Electrical Protection: Multiple safeguards including over current, over voltage, short circuit, and overload protection help protect both the converter and connected equipment.
- Smart Battery Protection: Low battery shutdown at 40 ±1V and high battery shutdown above 59V prevent damage from unsafe input voltage conditions.
- Rugged Reliability: A durable aluminum case improves heat dissipation and structural durability, supporting dependable performance in demanding automotive and mobile installations.

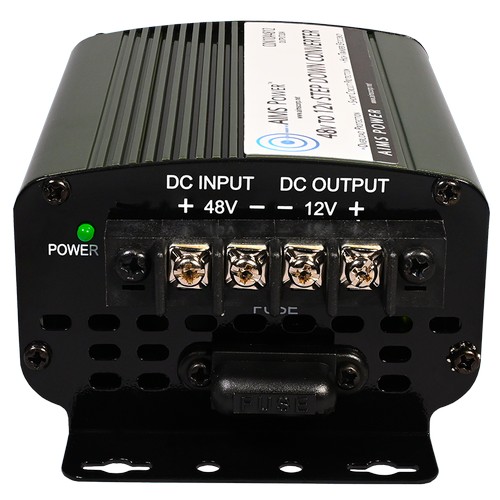

- Installer Friendly Connections: Terminal block input and output connections allow secure wiring for fast installation in vehicles, equipment, and custom power systems. Non isolated ground.
- Lifetime year tech support
- 2 Year Warranty
- CON4812 Manual 022026 | Download
Specifications - DC Input Voltage: 44-58 Vdc
- DC Output Voltage: 12.5-13.5 Vdc
- Output Current: 10 amps
- Output Current Max: 12 amps
- Non-Isolated
- Conversion Efficiency: >91%
- DC Input Low Battery Shutdown: 40 +/- 1 V
- DC Input High Battery Shutdown: >59 Vdc
- DC Input Over Current Protection: 7.5A Fuse
- DC Input Polarity Protection: Fuse Protected
- Over Temperature Protection: 150 +/- 5 degrees F
- DC Output Short Protection: Yes
- DC Output Over Current Protection: 12 amps
- DC Output Over Voltage Protection: TVS Diode
- .71 lbs
- 4.41" x 3.39" x 2.2"
