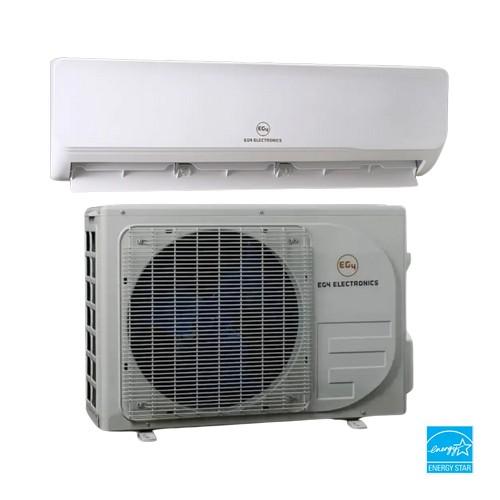

24K Hybrid Solar Mini-Split 24000BTU AC/DC Air Conditioner/ Heat Pump

The EG4 24K Hybrid Solar Mini-Split 24000BTU AC/DC Air Conditioner/ Heat Pump provides energy-efficient and eco-friendly temperature control. This advanced ductless heat pump/air conditioner is engineered to reduce your electric bill while ensuring that your living spaces stay comfortably cool or warm.

Features & Benefits

ENERGY STAR Certified Efficiency
Mini-split systems have driven significant progress in HVAC technology. This has led to the development of energy-efficient, ENERGY STAR certified options, offering more benefits. With exceptional energy efficiency, the EG4 Solar AC/DC Mini-Split excels in every aspect of its operation. By choosing an ENERGY STAR certified unit, you’re not only making an eco-friendly choice but also enjoying the benefits of lower energy consumption and long-term savings.

• EG4 AC/DC Plug-N-Cool Solar AC 12K 24K – Manual v2.3.1 | Download
• EG4 24K BTU AC/DC Plug-N-Cool Solar AC – Spec-Sheet | Download

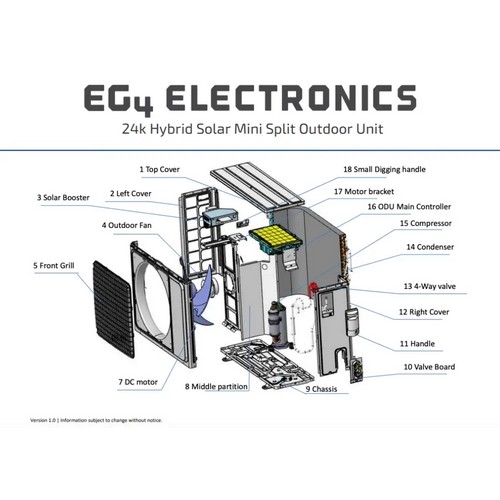

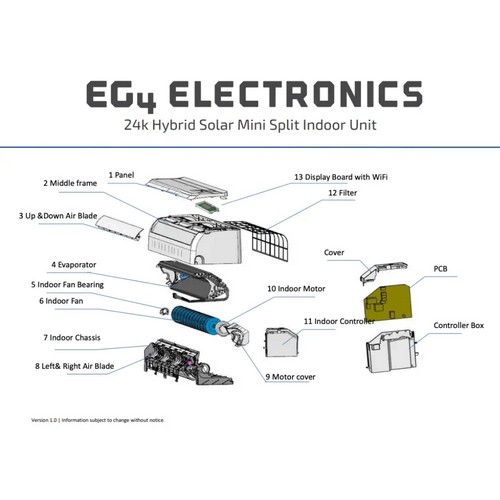

• EG4 24k Hybrid Solar Mini Split-Exploded View | Download
• EG4® DC Mini-Split – Wiring Diagrams v1.2 | Download

Elimination of Ductwork Hassles
Enjoy hassle-free cooling and heating with the ductless EG4 Mini-Split that is designed to streamline your experience by eliminating concerns related to ducts.

User-Friendly Installation
Experience easy DIY installation with the EG4 Mini-Split’s Plug-N-Cool technology that requires no special tools and makes it suitable for any living or workspace.

Solar Aircon App
Revolutionize your control with the Solar Aircon app for the EG4 Mini-Split, offering remote functionality, energy insights, and real-time data for informed decision making.

Operating Temperature Range
From -10°C to 58°C, the EG4 Mini-Split ensures consistent comfort in extreme weather conditions, available in both Fahrenheit and Celsius for personalized comfort.

Cooling/Heating Capacity
Heat or cool up to 1,350 sq. ft. with the EG4 Mini-Split, making it a versatile solution suitable for a variety of room sizes and property types.

Solar Integration
Upgrade to the EG4 Mini-Split for direct solar panel connection, minimizing power consumption and ensuring autonomy during outages through built-in solar MPPT technology.

Key Specification
Type: Hybrid – AC/DC Driven
Coverage: 1,350 square feet
SEER2 Rating: 21
Capacities: 6,100-25,200 BTU/h
Indoor Unit Sound: (Turbo/5/4/3/2/1 Block) 50/48.5/45.5/43.5/41/39 dB(A)
Outdoor Unit Sound: (Hi/Med/Lo) 58 dB(A)
HSPF2: 9.6
COP: 11.82 Btu/W
Recommended Solar Input: 1600-2400W (90VDC-380VDC)
Operating Temperature: (-10? to 58 ?)
Operation Temperature Indoor (Cooling/Heating): 61-90/32-90 °F
Operation Temperature Outdoor (Cooling/Heating): 32-131/5-86 °F
Weight: 77.07 KG / 169.93 LBS
Solar Aircon App: Yes
ENERGY STAR®: Yes
Warranty: 5 Years Limited Warranty

California Proposition 65 Warning

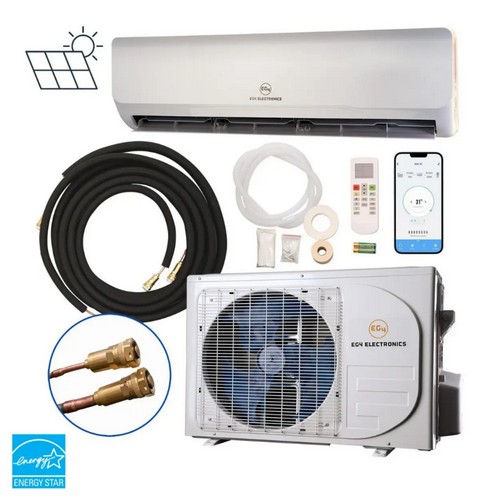

Includes

• Indoor Head Unit
• Outdoor Unit
• Pre-vacuumed Lineset & Electrical Wire – 16.4ft
• LCD Remote Control
• Installation Accessories
