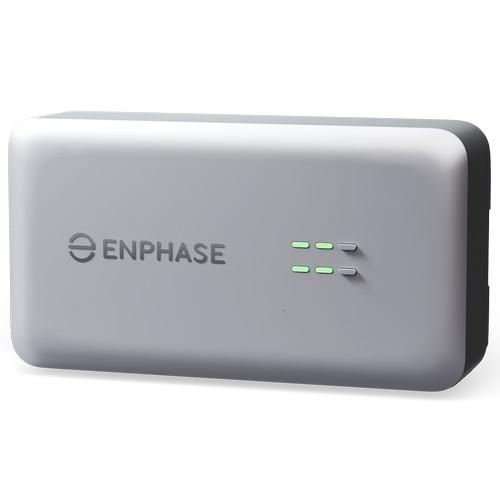

IQ Gateway Commercial ProThe IQ Gateway Commercial Pro delivers solar production and energy consumption data, along with monitoring and analysis software for comprehensive remote maintenance and management of IQ8/IQ9 Commercial Microinverter-based PV systems. It is compatible with both 277 V/480 V Wye and 120 V/208 V Wye grid configurations. With integrated revenue grade production metering and optional consumption monitoring, the IQ Gateway Commercial Pro is a platform for total energy management and integrates with IQ8/IQ9 Commercial Microinverters.
Details - Includes three 400 A continuous rated production CTs
- Enables web-based monitoring and control
- Provides bidirectional communications with remote upgrades
- Offers improved commissioning with Bluetooth 5.3
- Enhanced performance with Wi-Fi 6
- Supports power export limiting and zero export applications
- Allows easy system setup via the Enphase Installer App
- Offers flexible connectivity options: Wi-Fi, Ethernet, or cellular
- Backed by a 15-year limited warranty
Technical Specs - Typical power consumption: 20 W
- Capacity: Up to 300 microinverters
- Height: 128 mm
- Width: 238 mm
- Depth: 61 mm
- Weight: 0.5 kg
Compatibility - IQ9 Commercial Microinverters
- IQ8 Commercial Microinverters
- QD Cables
Whats in the Box - IQ Gateway Commercial Pro
- Three 400A Production Current Transformers (CT-400-277-SOLID)
- Aluminum DIN rail
Documentation - IQ Gateway Commercial Pro data sheet | Download
- IQ Gateway Commercial Pro quick install guide | Download
- PCS Certificate of Compliance for IQ9N - Aggregate Power Export Limit | Download
