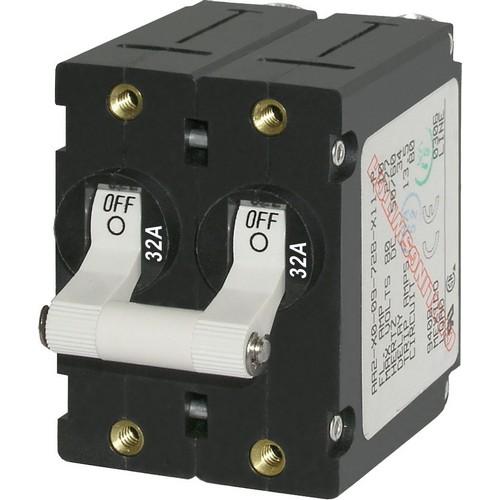

Blue Sea Systems, 7295, A-Series White Toggle Circuit Breaker - Double Pole 32A
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7295, A-Series White Toggle Circuit Breaker - Double Pole 32A

  • Model: 7295
  • GTIN: 00632085072957
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$91.67 $70.52

Manufacturer Info

(image for) Blue Sea Systems
A-Series White Toggle Circuit Breaker - Double Pole 32A
Specifications
Amperage32A AC32A DC
ColorWhite
Actuator Style Toggle
Poles2
Maximum Voltage120V AC240V AC65V DC
Circuit Breaker TypeMagnetic Hydraulic - trip free
Interrupt Capacity 3000A @ 120V AC3000A @ 240V AC1500A @ 240V AC [TUV]3000A @ 240V AC [UL 1077]7500A @ 65V DC
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Mounting Screw#6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Screw Terminal Torque14 in-lb (1.58 Nm)
Switching Cycles10000
Terminal Screws#10-32 Stainless Steel
Weight0.30lb (0.14 kg)
Weight0.30lb (0.14 kg)
Optional Accessories
8173 A-Series Double Blank Mounting Panel
