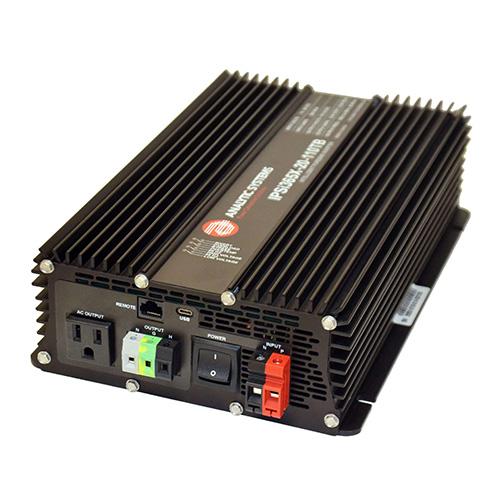

360 Watt, 40-80V In, 120VAC/60Hz Single Phase Out, PureSine InverterFeatures - Programmable Low Voltage Shutdown
- Overload Protected
- Short Circuit Protected
- Built-in GFCI
- DSP Controlled
- Programmable Frequency
- Over Temperature Protected
- Programmable Output Voltage (user-selectable 100-120VAC, 50/60Hz)
- Five year parts and labour warranty
- Product Specifications | Download
- Product Manual | Download
Digital Signal Processor controlled high power MOSFET technology creates a low voltage sine wave that is fed into a compact toroidal step-up transformer to create a very clean low EMI AC output.
Using the free to download ‘Inverter Wizard’ software, the user can select output frequency, output voltage, and low voltage shutdown parameters from any Windows laptop through the standard micro-usb interface as well as monitoring and logging input and output voltages, output power and inverter temperature.
Safety features include current limiting, short circuit protection, overtemperature warning and shutdown and low input voltage warning and shutdown (user adjustable).
An Off-Line UPS options allows external AC to be routed through the inverter to the load. The inverter will take over supplying the load only if the external AC fails.
| Function | Inverter |
|---|
| Conversion | DC to AC |
|---|
| Power (Watts) | 360 |
|---|
| Input Volts | 40 – 80 VDC |
|---|
| Output Volts | 120 VAC |
|---|
| Output Amps Continuous | 3 |
|---|
| Output Amps Peak | 3.6 |
|---|
| Input/Output Isolation | Yes |
|---|
| Technology | Digital |
|---|
| Product Series on website | IPSi365 |
|---|
| Option Codes | OPT-A: AC Detect & Autoswitch (Off Line UPS), OPT-M: Military Rugged, OPT-U: Safety Special Inspection (CSA/SPE-1000), OPT-X: Ruggedized & Wide Temp, OPT-Z: No Conformal Coating (Any Model) |
|---|
