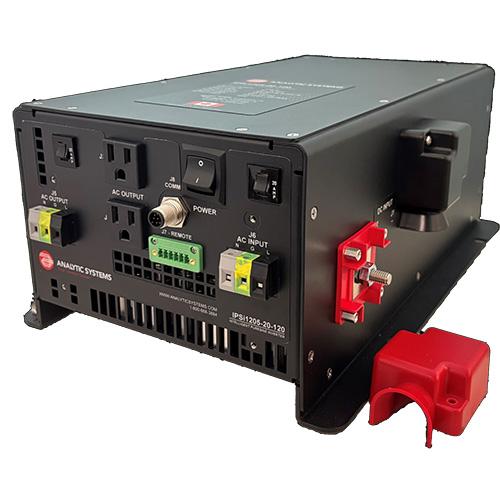

2400 Watt, 20-45VDC In, 120VAC Single Phase Out, PureSine InverterFeatures - DSP Controlled
- Overload Protected
- Short Circuit Protected
- Over Temperature Protected
- Built-in GFCI (disabled by default)
- Built-in AC Bypass Autoswitch UPS
- Programmable Low Voltage Shutdown
- Programmable Output Voltage and Frequency
- Five year parts and labour warranty
- Product Specifications | Download
The IPSi2405 Series Intelligent Pure Sinewave Inverters are designed for powering sensitive AC loads in harsh environment applications.
Internally, the IPSi2405 is controlled by a sophisticated Digital Signal Processor (DSP) for optimal control and efficient operation. Power MOSFET transistors and a heavy-duty toroidal power transformer produce stepped up AC voltage from the input DC. Additional filtering on the AC output reduces EMI noise that can interfere with sensitive communication equipment.
For safety, this unit features a low voltage warning with shutdown circuitry to protect the DC power source. The inverter is also safeguarded by high voltage and over-temperature protection with shutdown circuitry. All alarm conditions can be monitored on the bright LED indicator display and mirrored on the optional remote control panel (control panel coming soon, contact Sales for more details).
With the optional InverterWizard software, additional inverter settings can be adjusted using any Windows laptop via the inverter’s MicroUSB port. InverterWizard allows for adjustment of output frequency, output voltage, and alarm shutdown parameters, as well as monitoring and logging operating data.
| Function | Inverter |
|---|
| Conversion | DC to AC |
|---|
| Power (Watts) | 2400 |
|---|
| Input Volts | 100 – 180 VDC |
|---|
| Output Volts | 230 VAC |
|---|
| Output Amps Continuous | 10 |
|---|
| Output Amps Peak | 20 |
|---|
| Input/Output Isolation | Yes |
|---|
| Technology | Digital |
|---|
| Product Series on website | IPSi2405 |
|---|
| Option Codes | OPT-A: AC Detect & Autoswitch (Off Line UPS), OPT-M: Military Rugged, OPT-U: Safety Special Inspection (CSA/SPE-1000), OPT-Z: No Conformal Coating (Any Model) |
|---|
| Specialization | Commercial/Industrial |
|---|
