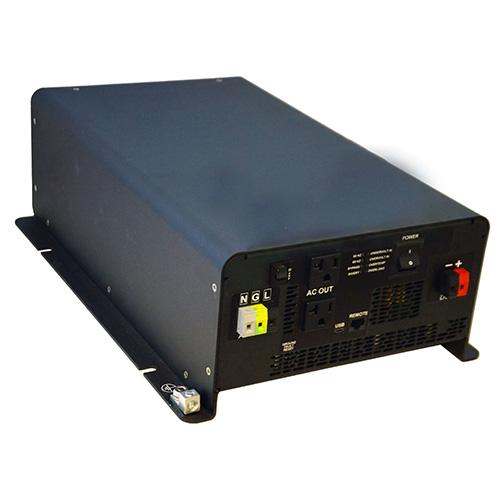

2400 Watt, 100-180VDC In, 230VAC/50Hz Out, PureSine InverterFeatures - DSP Controlled
- Optional AC Bypass
- Overload Protected
- Short Circuit Protected
- Programmable Frequency
- Over Temperature Protected
- Programmable Output Voltage
- Programmable Low Voltage Shutdown
- Five year parts and labour warranty
- Product Specifications | Download
The IPSi2405 Series Puresine Inverter delivers reliable power for sensitive AC loads in harsh environments. Controlled by a sophisticated Digital Signal Processor (DSP), it ensures optimal performance and efficiency. Power MOSFET transistors and a durable toroidal transformer generate AC voltage from DC input, while advanced filtering minimizes EMI noise, safeguarding communication equipment.Key safety features include low voltage warnings, high voltage and over-temperature shutdowns, with alarms displayed on a bright LED indicator and optionally mirrored on a remote control panel (contact Sales for details). The optional AC-bypass feature acts as an Off-Line UPS to route external AC power through the inverter to the load; the inverter will take over supplying the load only if the external AC fails.With the optional ‘Inverter Wizard’ software, users can fine-tune output frequency, voltage, and alarm parameters via a MicroUSB connection, as well as monitor and log operational data using a Windows laptop.
| Function | Inverter |
|---|
| Conversion | DC to AC |
|---|
| Power (Watts) | 2400 |
|---|
| Input Volts | 100 – 180 VDC |
|---|
| Output Volts | 230 VAC |
|---|
| Output Amps Continuous | 10 |
|---|
| Output Amps Peak | 20 |
|---|
| Input/Output Isolation | Yes |
|---|
| Technology | Digital |
|---|
| Product Series on website | IPSi2405 |
|---|
| Option Codes | OPT-A: AC Detect & Autoswitch (Off Line UPS), OPT-M: Military Rugged, OPT-U: Safety Special Inspection (CSA/SPE-1000), OPT-Z: No Conformal Coating (Any Model) |
|---|
| Specialization | Commercial/Industrial |
|---|
