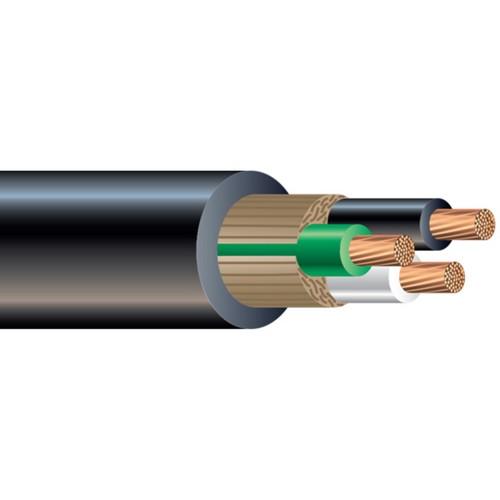

6 STR CU 4/C BLACK/WHITE/RED/GREEN SOOW BLACK 90C 600V PAPER 500 FT613 Volt 90°C Flexible Cord. Heat, Moisture and Oil Resistant EPDM Rubber Insulation, Heat, Moisture and Oil Resistant Flexible CPE Jacket.
Construction- Conductors: Class K stranded bare copper per ASTM B-174
- Insulation: EPDM
- Jacket: Black CPE (Other colors available upon request)
- Product Specifications | Download
Standards & References- UL 62
- CSA Standard 22.2 No. 49
- NEC 400
- NEC 501.140 Class I Division 2
- Passes CSA FT2 Flame Test
- MSHA
- Federal and Military Specification JC-580B
Application & FeaturesSouthwire Type SOOW Flexible Cords UL/ CSA listed are permitted for use as specified by Article 400 and related articles of the 2014 National Electrical Code. The cable is rated -40°C to 90°C, water, oil, and weather resistant, designed for hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications
| Size (AWG or kcmil) (mm2) | 6 AWG |
| No. of Conductors | 4 |
| No. of Strands | 133 |
| Nom. OD (mils) (mm) | 1075 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 830 1235 | lbs/1000' kgs/km |
| Allowable Ampacity | 45 |
| Nom. DC Resistance (Conductor) | 0.4 |
| Conductor Colors | BLACK/WHITE/RED/GREEN BLACK/WHITE/RED/GREEN |
