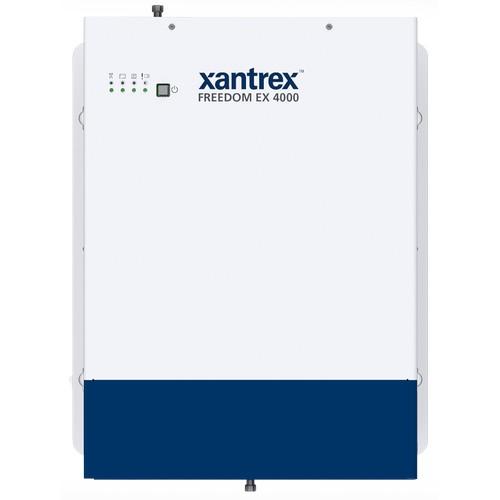

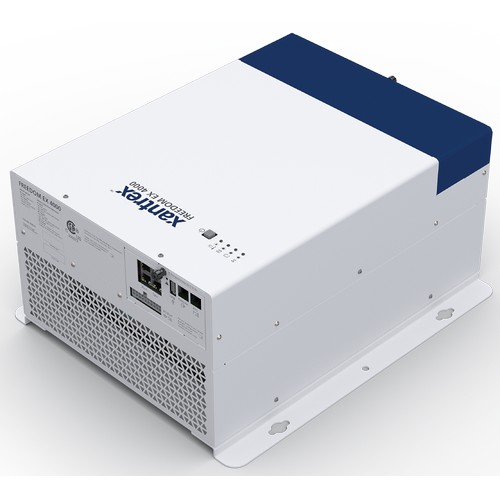

Xantrex, 820-4085-41, Freedom Ex 4000 Inv/Charger, 4000W, 80A, 120Vac/48VDC Nmea2000

  • Model: 820-4085-41
  • Manufactured by: Xantrex
  • Condition: New
  • Estimated Delivery: Dec 6th - Dec 12th
  • In Stock
Price:

$4,842.11 $3,724.70

Manufacturer Info

FREEDOM EX 4000

This true sine wave inverter has 120Vac, a 48V Lithium Ion-ready Battery Charger, a DC converter that outputs 12V up to 45A, and a 50A transfer relay all in one package. Its 200% surge for 5 seconds supports motor loads, and the built-in CAN communication makes integration into systems easy.

ALL IN ONE PACKAGE

The new FREEDOM EX 4000 is a truly unique, true sine wave power solution packing a powerful 48VDC, 4000W (8000W [5s]) inverter, with 50A transfer relay, 80A 48VDC battery charger, and a 48VDC to 12VDC, 45A converter inside one box. Designed for mobile applications that utilize 48VDC battery systems, the FREEDOM EX 4000 is designed to work as a standalone AC and DC power solution or supplement an existing generator to create a hybrid system. The FREEDOM EX 4000 features the most widely used communication protocols - RV-C (RV), NMEA 2000 (Marine) and J1939 for Trucks (future-ready) enabling it to be used in virtually any application that requires integration with 3rd party MFPs and software.
  • Datasheet | Download
  • Freedom EX 4000 Owners Guide - English | Download
  • Freedom EX 4000 Owners Guide - French | Download
  • Freedom EX 4000 Install Guide - English | Download
  • Freedom EX 4000 Install Guide - French | Download
  • Freedom EX 4000 Remote Panel Guide- English | Download
  • Freedom EX 4000 Remote Panel Guide - French | Download
  • Freedom EX 4000 USB Operations Guide | Download
  • Freedom EX4000 Warranty Terms & Conditions | Download
Certifications
  • CSA certified to CSA Std. to CSA 107.1 and, conforms to UL Std. UL458 and UL458 Marine Supplement (drip shield with product number 808-9004 required) ABYC E-11, A-31, A-32
  • 47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B)
Applications
  • Recreation Vehicles
  • Marine
Available in
  • FREEDOM EX 4000 - RV-C Protocol - 820-4080-41
  • FREEDOM EX 4000 - NMEA-2000 Protocol - 820-4085-41
Features
  • True sine wave to support sensitive electronics
  • 200% for 5s surge for motor
  • 50A 12VDC converter
  • Stackable in parallel or series
What Can Be Powered FREEDOM EX 4000
  • Fridge
  • Smartphone
  • TV
  • Laptop
  • Coffee-maker
  • Washer-Dryer
  • Air Conditioner
