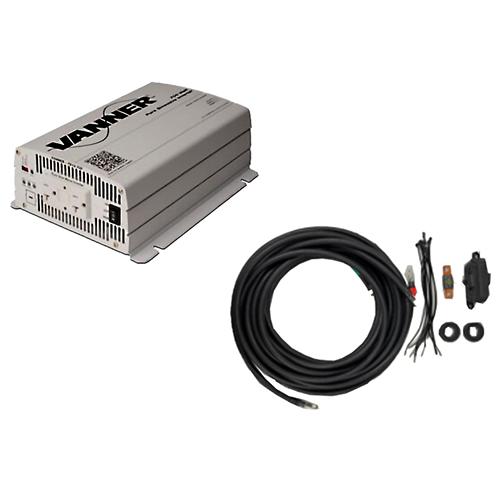

Vanner Inc, PKG-TS12-700-HL, TS Series Total System TruSine Wave Power Inverter, 12VDC Input & 700W AC Output with Wire Harness Large

Model: PKG-TS12-700-HL
Manufactured by: Vanner Inc
Condition: New
Estimated Delivery: Oct 31st - Nov 6th
Estimated Delivery: 3 to 5 Days
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$1,646.72 $1,266.71

Manufacturer Info

Other products

TS Series Total System TruSine™ Inverter, 12VDC Input & 700W AC Output with Wire Harness Large

Features

Commercial Grade TS Series AC Power Inverters operate and protect equipment in harsh conditions
Provides 700W of continuous sine wave power and 3-second surge power up to 1050W
Fully Terminated Installation Wire Harness included: 15 ft long, 2 awg, in-line fuse
Wire Harness designed to SAE Standards J1127/J1129
Wire Harness is Vehicle OEM compliant
DC-AC inverter system designed with advanced power electronic and microprocessor technology
TruSine™ technology generates pure sine wave AC power to operate and protect electronic devices even in harsh conditions
Efficienty rating of >91% provides longer inverter engine-off run time from batteries and lower battery discharge
Voltage Regulation ±5% and Waveform Regulation <5% THD
DC input range of 10.5Vdc to 16.5Vdc is compatible with all OEM voltage and alternators
Operating temperature range of -13F to 105F (-25C to 40C)
Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
Double Warranty Length with this Inverter and Wire Harness Bundle (4 years)
GFCI Duplex Receptacle
Dip Switch Selectable output voltage (100/110/115/120 VAC)
Remote Control via RJ45
All-metal body and chassis ensures safe operation and secure mounting regardless of orientation
LED Indicator Light
4-yr warranty when installed with the bundled installation and wire harness
UL / CUL Certified for Safety
Temp & Load Controlled cooling fan
Brochure | Download
Owner's Manual | Download
Power Inverter Bundle Sales Sheet | Download

Certifications:	UL 458
DC Input:	12Vdc
DC Voltage Range:	10.5V to 16.5V
Operating Temperature:	-13F to 105F (-25C to 40C)
Surge Rating:	150% of continuous power for 3 seconds
Dimensions:	8.27”W x 3.50”H x 12.35”D
Product Weight:	12.8 lbs
EMC Standards:	FCC Class B
Efficiency:	91%
Standby Recovery:	5 seconds
Gross weight:	0 lbs
