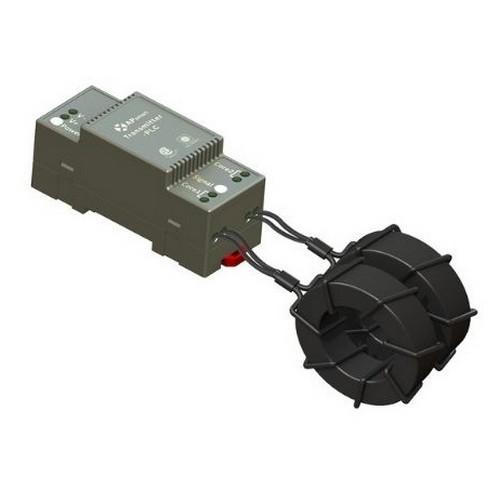

APSystems, 406001, 29mm Single Core Transmitter-PLC (no power supply), core line length 150mm

Model: 406001
Manufactured by: APSystems
Condition: New
Estimated Delivery: Oct 15th - Oct 21st
In Stock
Out of Stock

Price:

$57.58 $44.30

Manufacturer Info

Other products

Raising the bar in innovative DC MLPE solar power systems

TRANSMITTER-PLC

Meets NEC 2017&2020 (690.12) requirements
Switching off Transmitter-PLC results in rapid shutdown of the output of PV modules
Meets SunSpec requirements
Equipped with single/dual core
Optional 85-264VAC power supply
Optional 180-550VAC power supply
Spec Sheet | Download

The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution when paired withAPsmart RSD, a PV module rapid shutdown unit. While powered on, the Transmitter-PLC sends a signal to the RSD units to keep their PV modules connected and supplying energy.

RSD units automatically enter rapid shutdown mode when the Transmitter-PLC is switched off and resume energyproduction when power is restored to the Transmitter-PLC. This solution complies with NEC 690.12 specifications for 2017&2020 and supports the SunSpec signaling for rapid shutdown.

The Transmitter-PLC includes one or two cores and an optional power supply: 85-264VAC for residential,180-550VAC for commercial.
