Cotek, AD1500-30 C11, Non Parallel, RS485 Programmable Power Supply
The images shown are for illustration purposes only and may not be an exact representation of the product

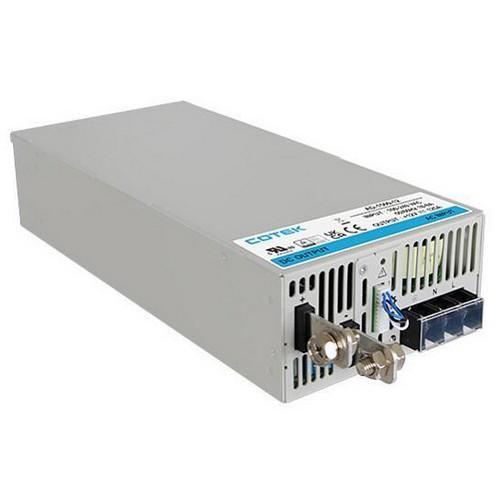

Cotek, AD1500-30 C11, Non Parallel, RS485 Programmable Power Supply

  • Model: AD1500-30 C11
  • Manufactured by: Cotek
  • Condition: New
  • Estimated Delivery: Oct 25th - Oct 31st
  • In Stock
Price:

$917.80 $706.00

Manufacturer Info

(image for) Cotek
AD-1500-LV

AD-1500-LV Features
  • Universal AC input (90-264Vac).
  • Programmable output voltage & current 0~105%.
  • Optional Changeable interface cards: A23, A24, C11, and Ethernet.
  • Built-in ORingFET and communication isolation circuit.
  • Support Parallel operation via CANBUS.
  • Built-in communication isolation circuit. (A23, A24 Version)
  • Constant current limit.
  • Auxiliary output support 5V/1A.
  • PMBus, MODBUS, RS232/485, and I2C protocol supported.
  • Protection: OVP, OLP, OTP, UTP, AC Failure, Power and Fan Failures.
  • Intelligent GUI to set and monitor parameters.
  • Accessory: AD COMMS Interface Kits. (Optional)
  • Datasheet | Download
MODELAD-1500-12, AD-1500-15, AD-1500-24, AD-1500-30, AD-1500-36, AD-1500-48, AD-1500-60
Main Features? Variety of protocols supported: PMBus, MODBUS, RS232/485, and I2C ? Smart GUI to set and monitoring the power supplies remotely
Rated Power1500W
DC Output Voltage12V; 15V; 24V; 30V; 36V; 48V; 57V
DC Output QuantitySingle
Rated Current125A; 100A; 62.5A; 50A; 41.7A; 31.3A; 26.3A
Ripple & Noise (Max.)150mVp-p (12V)
Input Voltage Range90 ~ 264VAC, 250~370VDC
Inrush Current (Typ.)30A / 115VAC, 45A / 230VAC (cold start)
FunctionAuxiliary power; Remote ON/OFF control; Power OK signal; Output voltage and current trim (C11 only)
Parallel ConnectionYes (coming soon)
ProtectionOver Load / Over Voltage / Over Temperature / Short Circuit / Fan Failure
CoolingLoad and temperature control fan
Efficiency93%
Operating Temperature-20~60?
Storage Temp. & Humidity-40~85?, 10~95%RH
SafetyTUV / UL / CE / UKCA / CB
Dimension (WxHxD)127.8x64x280.4 mm / 5.03x2.52x11.04 inch
Weight (Net)2.2kg
