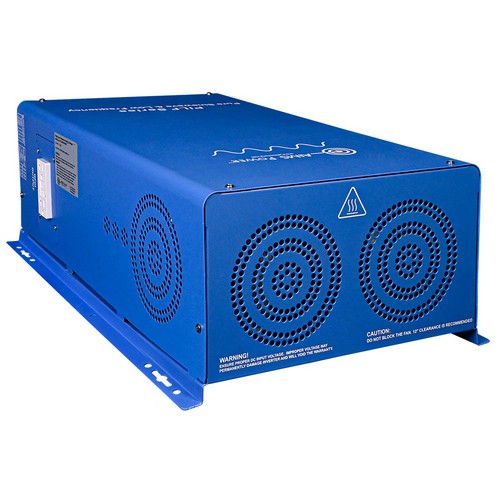

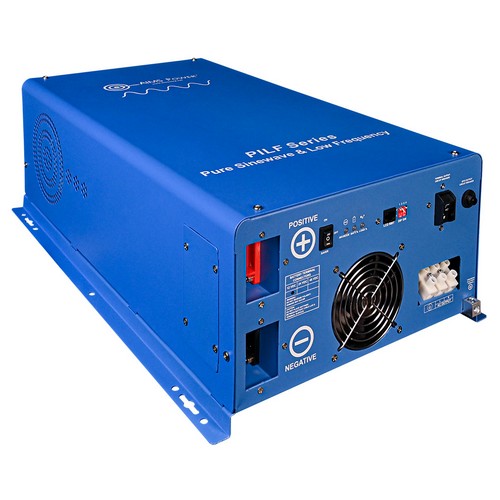

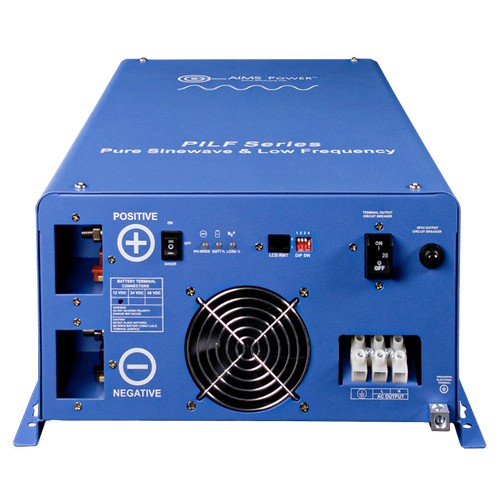

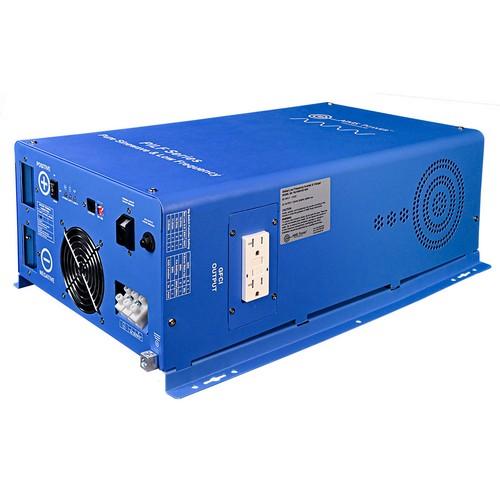

Industrial 2400 Watt 12V Low Frequency Pure Sine Inverter ETL Listed Conforms to UL458/CSA Industrial Grade 2400W Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding Applications
Experience uncompromising power reliability with the AIMS Power 2400W Pure Sine Power Inverter. Engineered to deliver true 120VAC power with a true neutral û virtually identical to grid power.
Engineered for demanding environments, this inverter delivers a massive 7,200-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage-even as battery levels drop-making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, GFCI outlets for added safety, hard wire terminal for convenience, and an optional LCD remote panel for convenient monitoring.
Ideal for professional-grade applications- Utility and service trucks requiring grid-quality power
- Mobile workshops, food trucks, and field service vehicles
- Off-grid homes, cabins, and emergency backup systems
- Remote construction sites and solar/battery backup installations
- User Manual | Download
Features- 2400W û 20 Amps Continuous Power û Handles demanding loads with ease
- 7.200W Surge Capacity û Powers high-startup equipment for 20 seconds
- ETL Listed Conforms to UL458 Standards & CSA
- Pure Sine Wave Output û Clean power safe for most devices

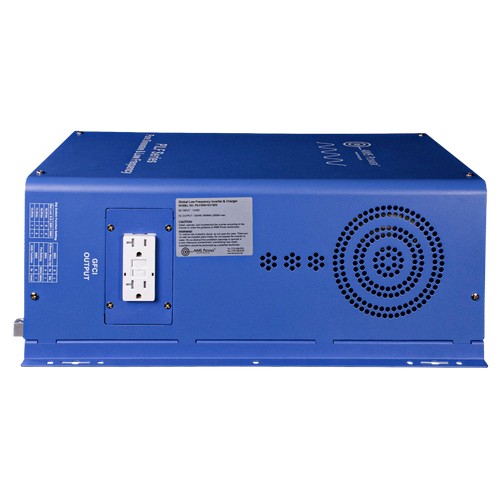

- Single GFCI Duplex receptacle û Enhanced safety protection

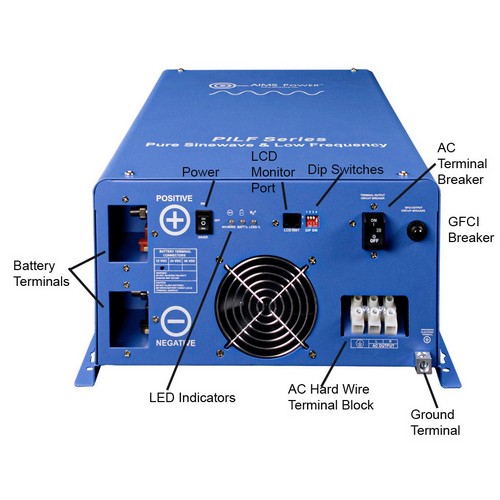

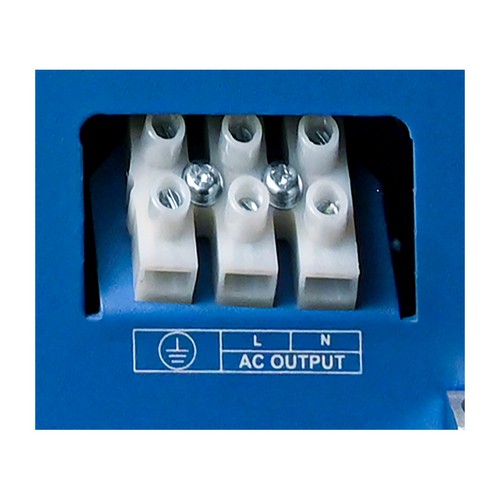

- Hard wire terminal for full output capacity
- DSP Technology û Advanced digital signal processing for optimal performance
- Harsh Environment Ready û Built to withstand tough conditions

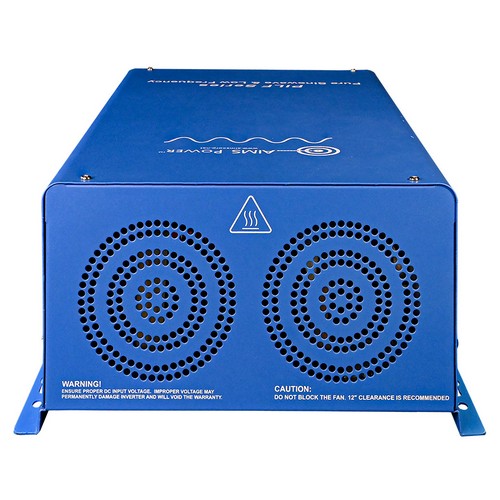

- 3-Step Controlled Fan û Quiet operation with efficient cooling
- Voltage Regulation û Stable output regardless of battery voltage fluctuations

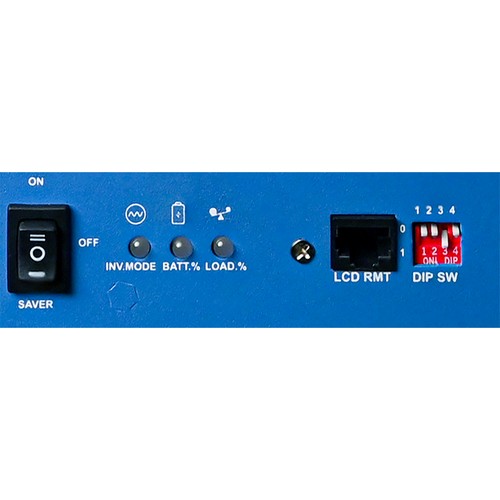

- Optional LCD display for convenient monitoring- REMOTELF
- Power Save Mode û Energy conservation when no load present
- Overload protection
- Low and high voltage protection
- Short circuit protection
- Low and high temperature protection
- Conformal coated
- 50Hz & 60Hz
- 2 Year Warranty
- Lifetime Tech support
| Power Inverter Model- PILF Series | 6W12V120V | 10W12V120V | 15W12V120V | 20W12V120V | 24W12V120V | 30W12V120V / 240V | 40W12V120V |
| Power Inverter Output | Continuous Power Watt | 600 | 1000 | 1500 | 2000 | 2400 | 3000 | 4000 |
| Surge Rating(20s) Watt | 1800 | 3000 | 4500 | 6000 | 7200 | 9000 | 12000 |
| Capable of Electric Motor | 0.6HP | 1.0HP | 1.5HP | 2.0HP | 2.4HP | 3.0HP | 4.0HP |
| Output Waveform | Pure Sine wave |
| Nominal Efficiency | Up to 88% |
| Power Factor | 0.9-1.0 |
| Nominal Output Voltage | 120Vac (Single Phase) or 120/240Vac (Split Phase PILF30W12V240V ONLY) |
| Output Voltage Regulation | ±10% RMS |
| Output Frequency | 50/60Hz ± 0.3Hz |
| Short Circuit Protection | Yes, Current Limit Function (Fault after 1sec) |
| THD | Typically-<3%, Max 10% under full linear load |
| DC Input | Nominal Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc / 11.0Vdc /11.5Vdc / 12.5Vdc |
| Low Battery Trip | 10.0Vdc / 10.5Vdc /11.0Vdc / 12.0Vdc |
| High Voltage Alarm & Fault | ≥16.0Vdc |
| High DC Input Recovery | ≤15.5Vdc |
| Low Battery Voltage Recover | ≥13.0Vdc |
| Idle Consumption-Search Mode | < 2.5W when Power Saver On Mode |
| Remote Control | Yes. Optional |
| Display | Tri-Color LEDs |
| Physical Specs | Mounting | Wall Mounted or Flat Placement- Any orientation except upside down (top facing down) |
| Inverter Weight | 17lbs | 26lbs | 32.5lbs | 47lbs | 52lbs | 57lbs | 69.5lbs |
| Shipping Weight | 19lbs | 28lbs | 35lbs | 57lbs | 62lbs | 68lbs | 83lbs |

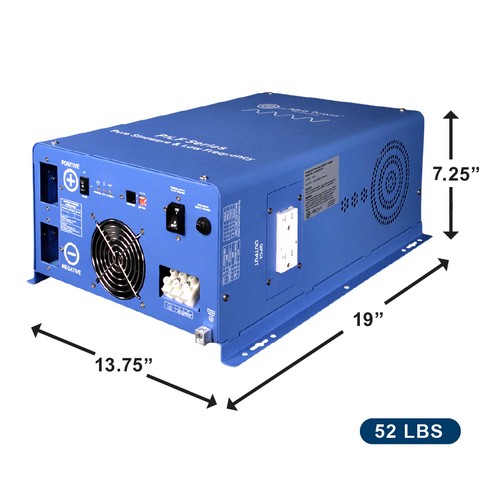

| Inverter Size LxWxH inches | 12.75×5.5×7.25 | 14.75×5.5×7.25 | 14.75x 5.5×7.25 | 19×13.75×7.25 | 19×13.75×7.25 | 19×13.75×7.25 | 22.25×13.75×7.25 |
| Shipped Size | 17 x 9 x 9 | 20 x 9 x 9 | 20 x 9 x 9 | 24 x 18 x 12 | 24 x 18 x 12 | 24 x 18 x 12 | 27 x 18 x 12 |
