Industrial 2000 Watt 12V Low Frequency Pure Sine Inverter ETL Listed Conforms to UL458/CSA

Industrial Grade 2000W Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding Applications

Experience uncompromising power reliability with the AIMS Power 2000W Pure Sine Power Inverter. Engineered to deliver true 120VAC power with a true neutral û virtually identical to grid power.

Engineered for demanding environments, this inverter delivers a massive 6,000-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage-even as battery levels drop-making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, GFCI outlets for added safety, hard wire terminal for convenience, and an optional LCD remote panel for convenient monitoring.

Ideal for professional-grade applications

• Utility and service trucks requiring grid-quality power
• Mobile workshops, food trucks, and field service vehicles
• Off-grid homes, cabins, and emergency backup systems
• Remote construction sites and solar/battery backup installations
• User Manual | Download

Features

• 2000W û 16 Amps Continuous Power û Handles demanding loads with ease
• 6,000W Surge Capacity û Powers high-startup equipment for 20 seconds
• ETL Listed Conforms to UL458 Standards & CSA
• Pure Sine Wave Output û Clean power safe for most devices
• Single GFCI Duplex receptacle û Enhanced safety protection

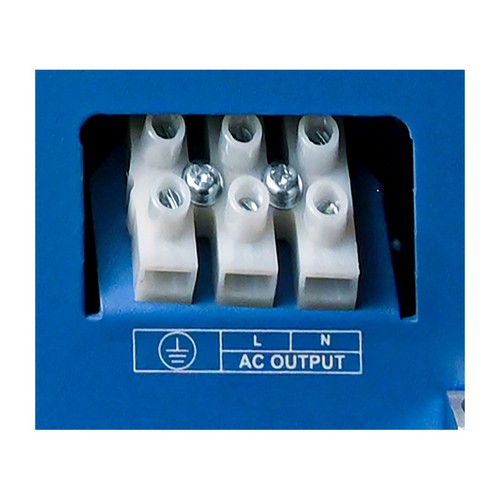

• Hard wire terminal for full output capacity
• DSP Technology û Advanced digital signal processing for optimal performance
• Built to withstand harsh conditions
• 3-Step Controlled Fan û Quiet operation with efficient cooling
• Voltage Regulation û Stable output regardless of battery voltage fluctuations
• Optional LCD display for convenient monitoring- REMOTELF
• Power Save Mode û Energy conservation when no load present
• Overload protection
• Low and high voltage protection
• Short circuit protection
• Low and high temperature protection
• Conformal coated
• 50Hz & 60Hz
• 2 Year Warranty
• Lifetime tech support

Power Inverter Model- PILF Series	6W12V120V	10W12V120V	15W12V120V	20W12V120V	24W12V120V	30W12V120V / 240V	40W12V120V
Power Inverter Output	Continuous Power Watt	600	1000	1500	2000	2400	3000	4000
Surge Rating(20s) Watt	1800	3000	4500	6000	7200	9000	12000
Capable of Electric Motor	0.6HP	1.0HP	1.5HP	2.0HP	2.4HP	3.0HP	4.0HP
Output Waveform	Pure Sine wave
Nominal Efficiency	Up to 88%
Power Factor	0.9-1.0
Nominal Output Voltage	120Vac (Single Phase) or 120/240Vac (Split Phase PILF30W12V240V ONLY)
Output Voltage Regulation	±10% RMS
Output Frequency	50/60Hz ± 0.3Hz
Short Circuit Protection	Yes, Current Limit Function (Fault after 1sec)
THD	Typically-<3%, Max 10% under full linear load
DC Input	Nominal Input Voltage	12.0Vdc
Minimum Start Voltage	10.0Vdc
Low Battery Alarm	10.5Vdc / 11.0Vdc /11.5Vdc / 12.5Vdc
Low Battery Trip	10.0Vdc / 10.5Vdc /11.0Vdc / 12.0Vdc
High Voltage Alarm & Fault	≥16.0Vdc
High DC Input Recovery	≤15.5Vdc
Low Battery Voltage Recover	≥13.0Vdc
Idle Consumption-Search Mode	< 2.5W when Power Saver On Mode
Remote Control	Yes. Optional
Display	Tri-Color LEDs
Physical Specs	Mounting	Wall Mounted or Flat Placement- Any orientation except upside down (top facing down)
Inverter Weight	17lbs	26lbs	32.5lbs	47lbs	52lbs	57lbs	69.5lbs
Shipping Weight	19lbs	28lbs	35lbs	57lbs	62lbs	68lbs	83lbs

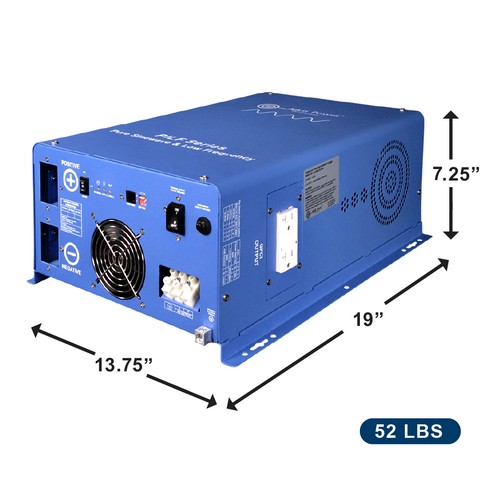

Inverter Size LxWxH inches	12.75×5.5×7.25	14.75×5.5×7.25	14.75x 5.5×7.25	19×13.75×7.25	19×13.75×7.25	19×13.75×7.25	22.25×13.75×7.25
Shipped Size	17 x 9 x 9	20 x 9 x 9	20 x 9 x 9	24 x 18 x 12	24 x 18 x 12	24 x 18 x 12	27 x 18 x 12
